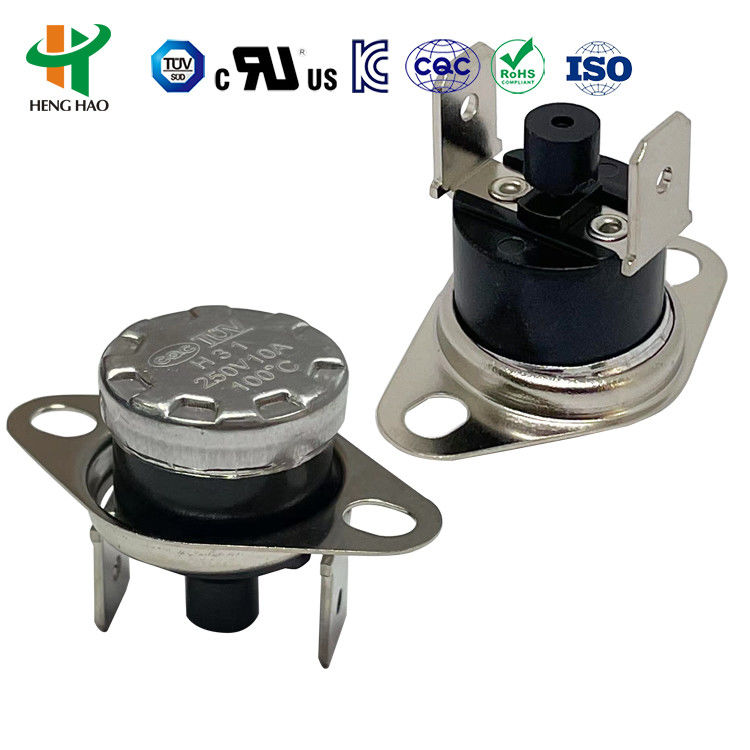

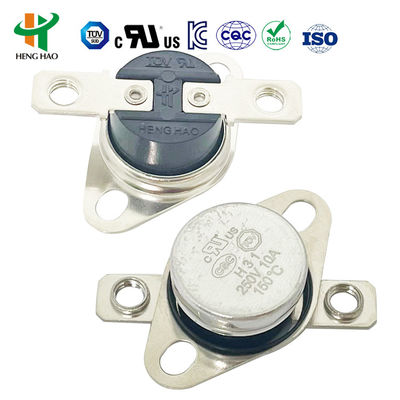

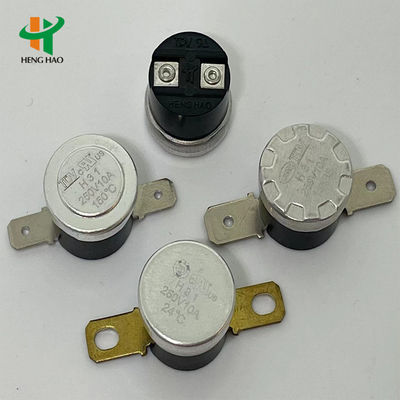

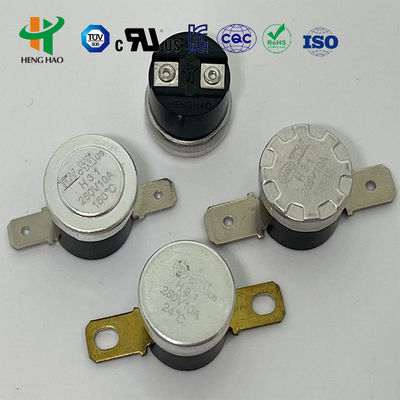

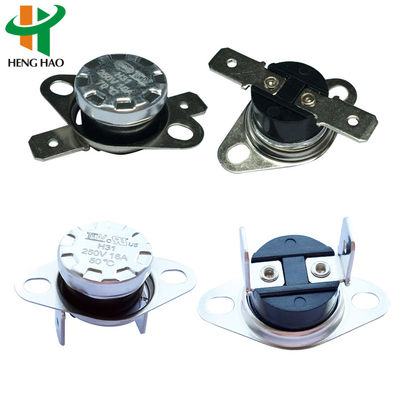

KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

Snap Action KSD301

,

KSD301 Bimetallic Thermostat

,

Thermal Cut Off Switch KSD301

KSD301 Bimetallic Thermostat - Snap-Action Thermal Cut Off Switch
The KSD301 and KSD302 temperature controllers operate on the principle of bimetallic discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, extended lifespan, and reduced radio interference.
Specifications
Parameter Value
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (or custom)
Temperature Deviation ±3/±5/±10°C (or custom)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Reset Types
Manual Reset Type
Features bimetallic strip temperature sensing. At action temperature, the disc snaps open and requires manual reset via button press (4-6N force recommended) after temperature drops ≥20°C. Ensure ≥20.4mm clearance between reset button and cover.
Auto Reset Type
Automatically resets when temperature drops to specified level without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, laminators, steam irons, water dispensers, and wind warmers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
Custom temperature settings available per client request
Certifications: UL, CQC, TUV, and RoHS compliant.
KSD301 Bimetallic Thermostat Thermal Cut Off Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
