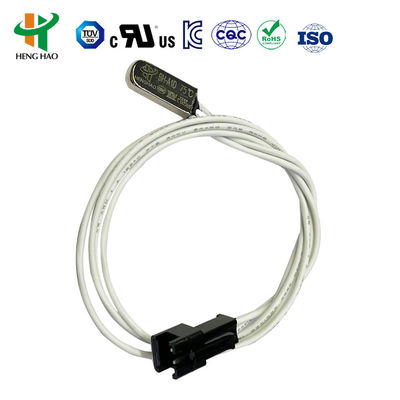

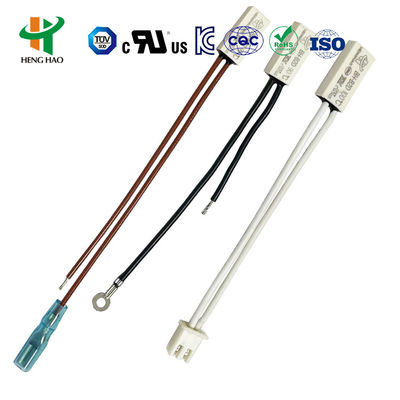

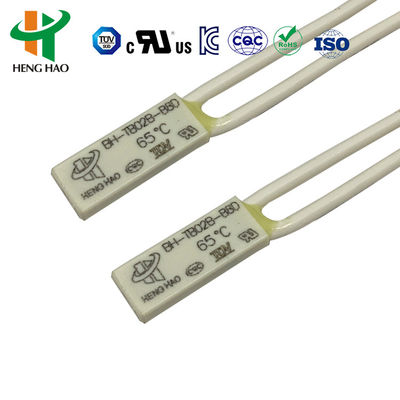

KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Large Image :  KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

KSD9700 Thermostat Temperature Controller

,

Bimetallic Thermostat Temperature Controller

,

Thermal Fuse Thermostat Temperature Controller

KSD9700 Thermostat Bimetallic Thermostat Temperature Controller Thermal Fuse
The KSD9700 temperature protector features a bimetallic design for reliable thermal protection. Composed of a thermal conductive metal casing, bimetallic parts with silver alloy contact points, and heat-resistant components, it automatically disconnects circuits at preset temperatures and resets when cooled.
Principle and Structure
The H20/H21 series universal and enhanced protectors feature large metal casings containing bimetallic components welded with silver alloy contact points, conductive brackets, and insulation stands. During abnormal operation, rising temperatures trigger quick bimetallic action to open contacts and disconnect the circuit. Normal operation resumes automatically when temperatures return to safe levels.
H20/H21 Series Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open Temperature (30~150)±5°C; 5°C steps
Reset Temperature 2/3 of action temperature (±15°C tolerance) or customized to customer requirements
Life Times 10,000 cycles
Contact Closure Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Electric Strength AC1500V/1min without breakdown or flashover
Certifications: UL File No. E487478 | CQC Certificate No. CQC16002142880 | TUV Certificate No. B160592241002
KSD9700 Temperature Controller Dimensions
Model Case Length (mm) Width (mm) Height (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, 70mm length (customizable)
H21 Metal 18.5 7.3 3.8 AC250V 20A #16 3135

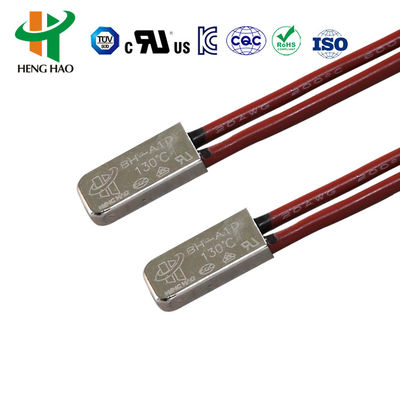

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, 70mm length (customizable)
H20/H21 Series Applications
Ideal for rechargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heating appliances, and instruments.
  • Manual Reset Type: Requires physical reset button press after temperature drops 20°C from trip point (4-6N force recommended)
  • Auto Reset Type: Automatically reconnects circuit when temperature returns to safe operating range
Certifications: UL, CQC, TUV, and RoHS compliant
KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 0 KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 1 KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 2 KSD9700 Bimetallic Thermostat Temperature Controller with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 3
