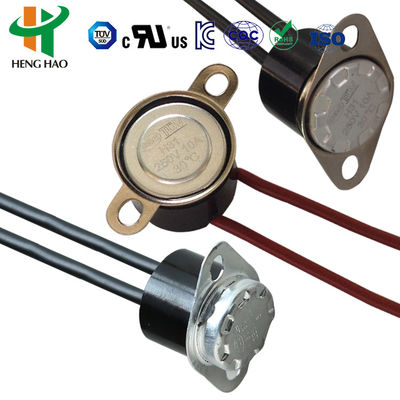

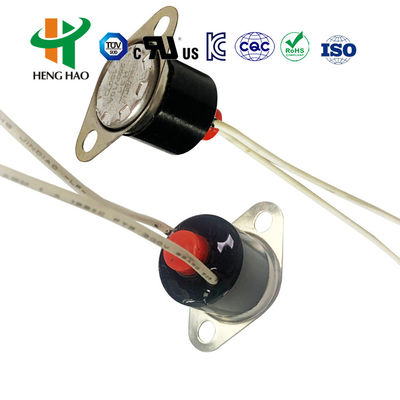

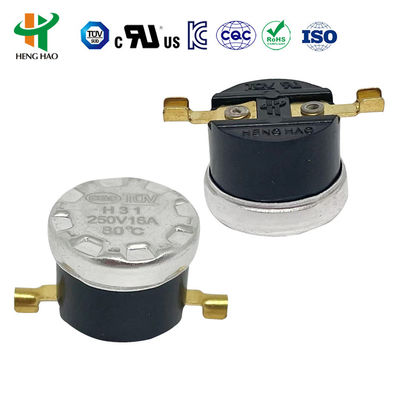

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

Bimetallic Thermostat KSD301

,

Bimetallic Thermostat

,

Temperature Protector KSD301

Temperature Protector KSD301 Thermostat Bimetallic Thermostat
Principle and Structure
The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes occur. This snap action activates internal contacts, either completing or breaking the electrical circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100000 times
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
Terminal Angle Bending angle: 0~90°C optional
Housing Plastic or ceramic

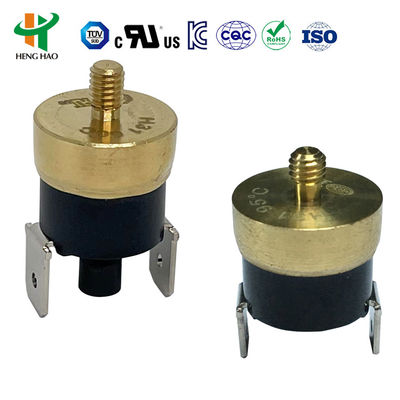

Temperature Sensor Face Aluminum cap or copper head
Reset Types
Manual Reset Type: Requires physical button press to reconnect circuit after temperature drops approximately 20°C from trip point. Requires 4-6N force for reset.
Auto Reset Type: Automatically reconnects circuit when temperature drops to specified reset point without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
Custom temperature settings available according to client requirements
Certifications: UL, CQC, TUV and RoHS approved
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1

Tag:

ksd301 thermal switch,

bimetal snap disc thermostat,

ksd301 temperature switch
