NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient

NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient
NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient
NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient

Large Image :  NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.3~0.6PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V1A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Highlight:

Thermistor Temperature Sensor Probe

,

Thermistor Temperature Sensing Probe

,

NTC Temperature Sensing Probe

Temperature Sensing Probe NTC Temperature Sensor Thermistor
NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient 0
Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K
Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10
Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient) 2500~5000K
Constant temperature 25℃±0.05℃
Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1, ±2
Constant temperature 25℃±0.05℃
Constant temperature 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃
Static in the air
T (thermal time constant) ≤25S
Static in the air
Ta (Working temperature) -40℃~+250℃
Pn (rated power) 50mw within working temperature

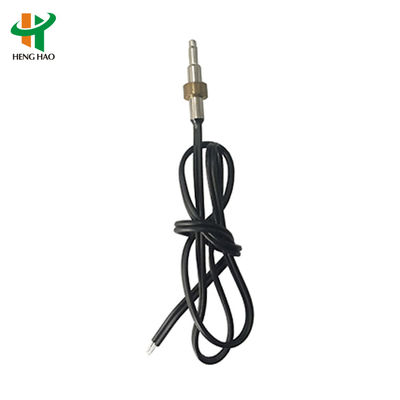

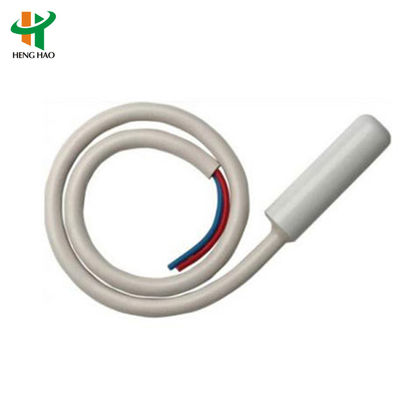

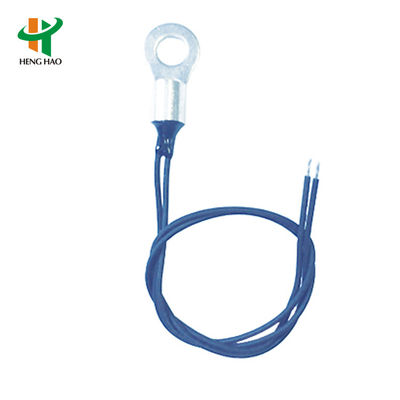

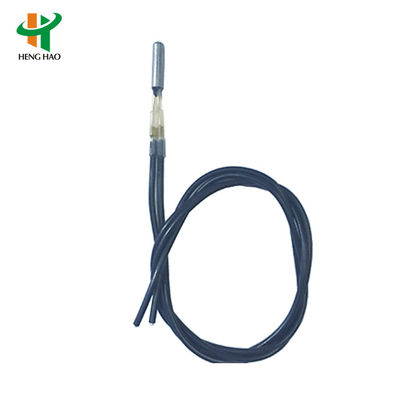

Case and Head Options
  • Fork head
  • O ring head
  • Drops of water head
  • Metal case
  • Thread copper case
  • Injection head
  • Custom designs according to client's drawing
Lead Wire Options
  • #24 30# 2651
  • UL4411 28#
  • Double wired conductor
  • Custom options according to client's request
Terminal Options

Can be riveted according to the requirements of various terminals

Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold products available
  • Strict protection of your private information and design ideas
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
PT100/PT500/PT1000 Temperature Sensor
NTC Temperature Sensor Thermistor with 5K to 100K Nominal Resistance ±1 to ±10 Permissible Variance and 2500~5000K Material Coefficient 1
Product Specification Details
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or custom according to client's request
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or custom according to client's request
Level of protection IP68
