KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Large Image :  KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month year
Contact Now

KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Bakelite
Highlight:

Temperature Protector Thermal Protector

,

Temperature Controlled Thermal Protector

,

KSD9700 Thermal Protector

Thermal Protector KSD9700 Temperature Protector Temperature Controlled Switch
The KSD9700 series thermostat features universal and enhanced protectors with large metal casing. It consists of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. During abnormal operation, when environment temperature reaches the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operation temperature, the contact point automatically closes to resume normal operation.
Electrical Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be customized.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
Certifications
UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
Thermostat Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm, or customized
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135

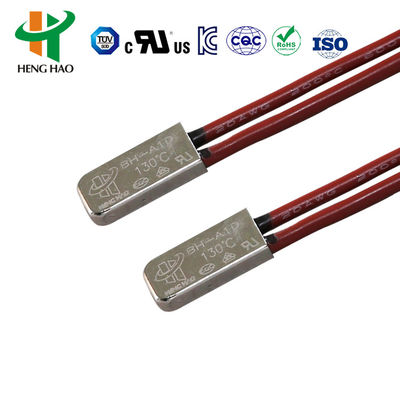

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or customized

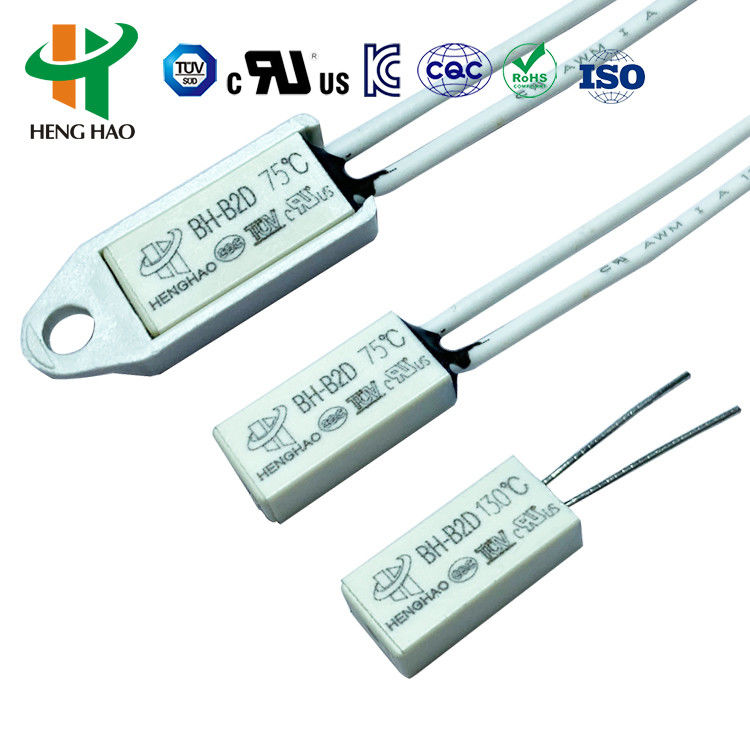

BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or customized
Applications
The H20 and H21 series temperature protectors are suitable for rechargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances and instruments.
Operation Types
  • Manual reset type: When temperature reaches the action range, the bimetallic strip quickly disconnects. The contact point cannot reset until manually pushing the reset button after temperature declines by 20°C. (Note: Apply 4-6N force for reset. Maintain at least 20.4mm distance between reset button and cover.)
  • Auto reset type: The contact point automatically resets and resumes operation when temperature declines to a fixed point.
Certifications
The product has UL, CQC, TUV and RoHS certification approval.
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 0
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 1
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 2
KSD9700 Thermal Protector Temperature Switch with 50-150℃ Range Normally Closed or Open Auto or Manual Reset 3
