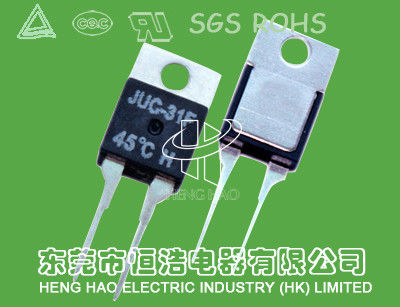

High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage

High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage
High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage

Large Image :  High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage

Product Details:
Place of Origin: DONGGUAN CHINA
Brand Name: HENG HAO
Certification: VDE UL CQC CB SGS
Model Number: JUC-31F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US0.26-0.5/
Packaging Details: 1000pcs per carton
Delivery Time: 5-7 days
Payment Terms: TT, CASH.LC.WEST UNION
Supply Ability: 100000000pcs per month

High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage

Description
Highlight:

temperature cutoff switch

,

thermo cut off

JUC-31F temperature swtich, JUC-31F thermal protector switch





JUC-31F thermostat’s Principle and structure



The product is a sensor of belonging to touch-type plastic Snap temperature thermostat ,the adoption of international standard package ,the product has high reliability ,sensitive and accurate ,small size ,light weight ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification.





JUC-31F min temperature protector’s Application



JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection.



JUC-31F thermostat’s specification



1. Contact type: 1D (normally closed), or 1H (normally open)

2. Electrical rating: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A

3. Operating temperature range: 0~130℃,error ±3℃ ±5℃

4. Reset temperature (difference value with operating temp. ): 8~35℃

5. Environment temperature: -55~+180℃

6. Overheating temperature:250℃/moment

7. Contact resistance: ≤  50mΩ

8. Insulation resistance : ≥ 100 mΩ

9. Dielectric withstand voltage: ≥1500V

10. Weight < 2g

11. Life cycles: ≥10,000 times

12. Open temp. and reset temp. Sheet

Operating temperature/°C

Recovery temperature/°C(lower than Operating temperature)

Error

Testing way (Speed of temperature rise and fall)

0~99

5~35

+-3°C

1°C/min

100~130

7~40

+-5°C

JUC-31F thermostat’s drawing

High Sensitive Thermal Protection Switch JUC-31F Electric Equipment Usage 0
