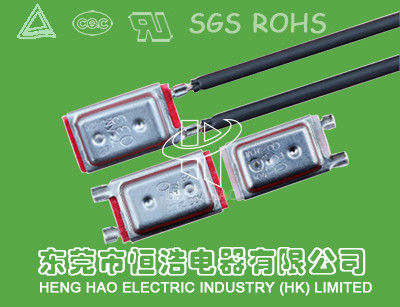

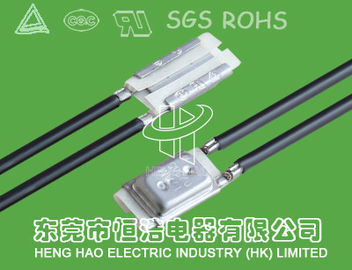

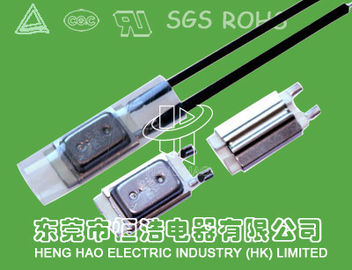

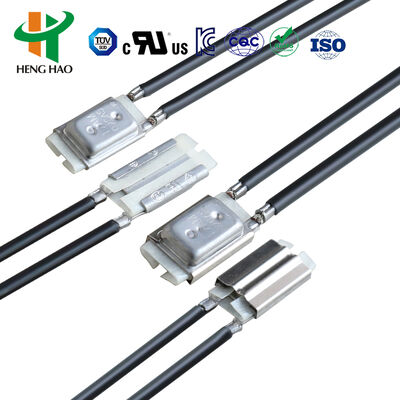

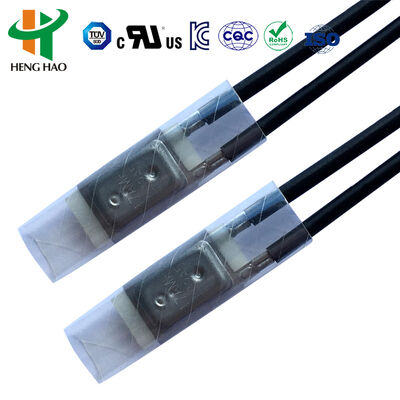

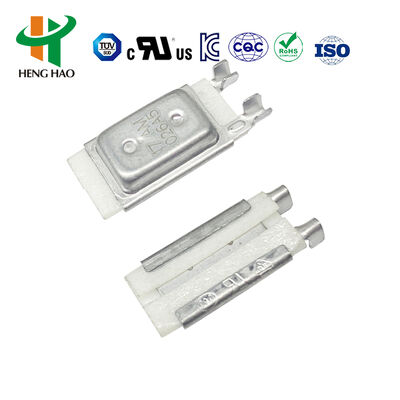

KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model

Sensata thermal protector’s Principle and structure of KLIXON 17AM / 7AM

KLIXON 17AM Thermal protector works: current through KLIXON bimetal and two contacts, When the appliance is not working properly, so that the ambient temperature or current is too high, to protect the device when the heat escape temperature, the bimetallic reed was quick action, so cut off the circuit. When the temperature dropped to reset temperature, KLIXON Bi-metal springs quickly closed again.

Sensata thermal protector of KLIXON 17AM / 7AM application

17AM thermal protection suitable for a wide range of applications, reliable performance. It is a tiny, fast moving, hot mobile device. In the field of thermal protection technology, it is a widely used to protect components. For motors, pumps, transformers, lighting, equipment and similar electric appliances ... over-temperature, or thermal protection.

Sensata thermal protector KLIXON 17AM / 7AM specification

1. Large number of temperature specifications, 60℃~160℃ ±5℃ (each 5℃ one specification)
2. Contact capacity: AC250V 9A / AC115V 22A / DC16V 20A
3. have a sensor temperature and current performance of the action of the double
4. Stainless steel shell with liner, for the vast majority of Chak-dip process
5. according to customer's specifications and needs of a variety of riveting wire length

6. Working life: 10,000 times

7. Product size: 23 x 10 x 4.6mm

Sensata thermal protector KLIXON 17AM / 7AM drawing
