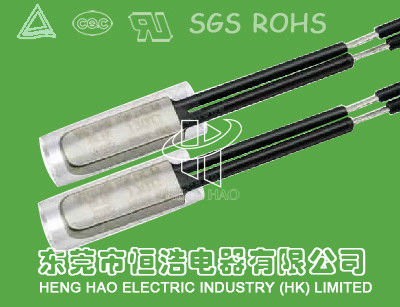

Small Size Motor Thermal Overload Switch Electronic Beauty Instrument Use

Description

Life Cycle:

100000 Cycles

Voltage & Current:

250V 16A

Contact Type:

Normally Closed Or Normally Open

Switch Type:

Auto Reset Or Manual Reset

Highlight:

thermal protection switch

thermal overload protector switch

Small Size Motor Thermal Overload Switch for Electronic Beauty Instrument Use

Operating Principle and Structure

The BW series thermal protector utilizes a specifically engineered bimetallic strip that operates without auxiliary mechanisms. The bimetallic element directly senses heating current and rapidly changes state to automatically open or close electrical contacts, providing reliable overheat and overload protection.

Applications

Widely used in electric motors and electrical equipment including:

Electric blanket and hot wall systems
Washer motors and soybean milk machine motors
Fan motors and air conditioning motors
Fractional motors and direct current motors
AC brushless motors and water pumps
Transformers and rectifiers
Lighting systems and rechargeable batteries
Various electric heating appliances

Technical Specifications

Contact Type: Normally closed and Normally open
Electrical Rating: 10A/AC120V; 8A/AC250V; 10A/AC250V; 16A/AC250V
Circuit Resistance: ≤50mΩ (Initial value)
Insulation Resistance: ≥100mΩ
Action Temperature Range: 40~150℃
Case Options: Metal case and plastic case
Life Expectancy: ≥10,000 cycles

Dimensions and Models

Model	L(mm)	W(mm)	H(mm)	Electrical Rating	Lead Wire (mm)
BW metal	20	7.5	3.8	5A/250V; 10A/250V	AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or custom requirements
BW metal	20	8.0	4.1	16A/250V	AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or custom requirements
BW plastic	20	8.0	4.0	5A/250V; 10A/250V	AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or custom requirements

Temperature Specifications

Code	Open Temp.	Reset Temp.	Code	Open Temp.	Reset Temp.
40	40℃±5℃	≥30℃	100	100℃±5℃	70±10℃
45	45℃±5℃	≥30℃	105	105℃±5℃	70±12℃
50	50℃±5℃	≥30℃	110	110℃±5℃	75±12℃
55	55℃±5℃	≥30℃	115	115℃±5℃	80±12℃
60	60℃±5℃	40±10℃	120	120℃±5℃	85±12℃
65	65℃±5℃	45±10℃	125	125℃±5℃	90±12℃
70	70℃±5℃	50±10℃	130	130℃±5℃	95±12℃
75	75℃±5℃	55±10℃	135	135℃±5℃	100±12℃
80	80℃±5℃	60±10℃	140	140℃±5℃	105±12℃
85	85℃±5℃	65±10℃	145	145℃±5℃	110±12℃
90	90℃±5℃	70±10℃	150	150℃±5℃	115±12℃
95	95℃±5℃	75±10℃

Competitive Advantages

Compact size for easy installation
Quick-acting bimetallic strip with fast response
Extended lifespan exceeding 10,000 cycles
Prevents vacuum impregnation process leaks
Direct replacement for SENSATA 17AM/7AM and SEKI ST-22 models

Technical Drawings
