BW-ABJ Motor Thermal Overload Switch Normally Closed / Open Type Available

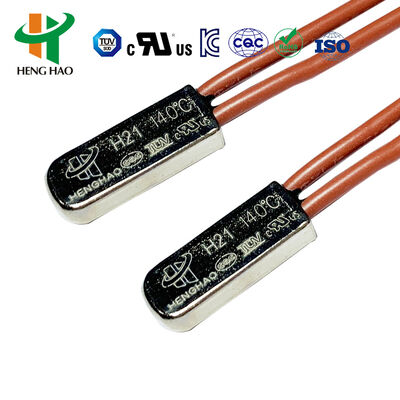

Large Image : BW-ABJ Motor Thermal Overload Switch Normally Closed / Open Type Available

Product Details:

Place of Origin:	China
Brand Name:	HENGHAO
Certification:	UL,CQC,VDE,ROHS
Model Number:	BW9700

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.19 / pieces
Packaging Details:	1000pcs per carton
Delivery Time:	7 days
Payment Terms:	TT, CASH.LC.WEST UNION
Supply Ability:	100000000pcs per month

Contact Now

BW-ABJ Motor Thermal Overload Switch Normally Closed / Open Type Available

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	motor thermal protection switch , thermal protection switch

BW-ABJ Motor Thermal Overload Switch Normally Closed / Open Type Available

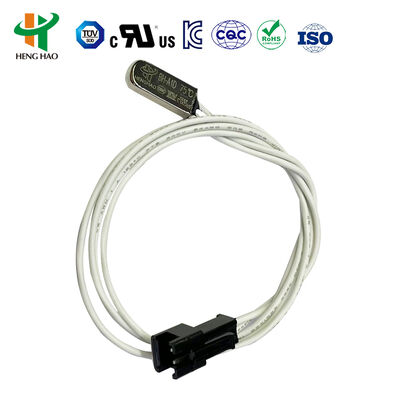

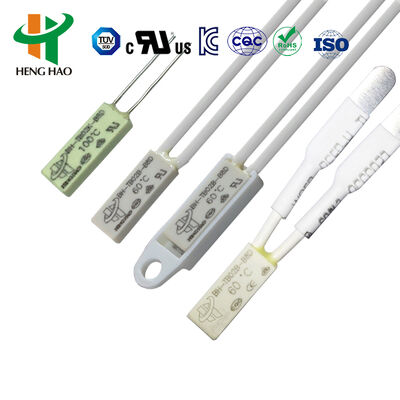

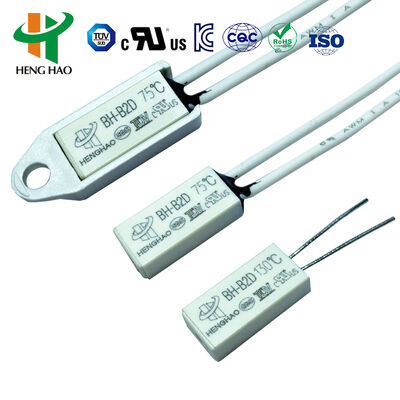

BW-ABJ Thermal Motor Protectors

Principle and Structure

BW series thermal protector utilizes a geometrically designed bimetallic strip that operates without auxiliary mechanisms. The bimetallic strip directly senses heating current and rapidly changes state to automatically cut the circuit, providing both overheating and overload protection.

Applications

Widely applied in electric motors and electrical equipment including: electric blankets, hot walls, washer motors, soybean milk machine motors, fan motors, air conditioner motors, fractional motors, DC motors, AC brushless motors, water pumps, transformers, rectifiers, lighting, rechargeable batteries, and electric heating appliances.

Specifications

Contact Type: Normally closed and Normally open
Electrical Rating: 10A/AC120V; 8A/AC250V; 10A/AC250V; 16A/AC250V
Circuit Resistance: ≤50mΩ (Initial value)
Insulation Resistance: ≥100mΩ
Action Temperature Range: 40~150℃

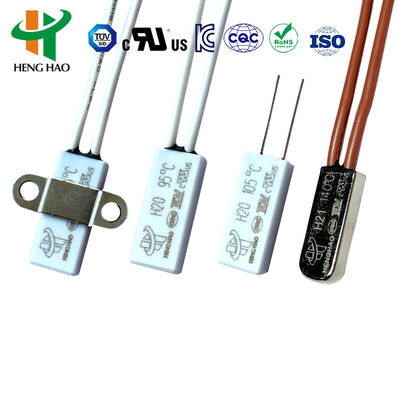

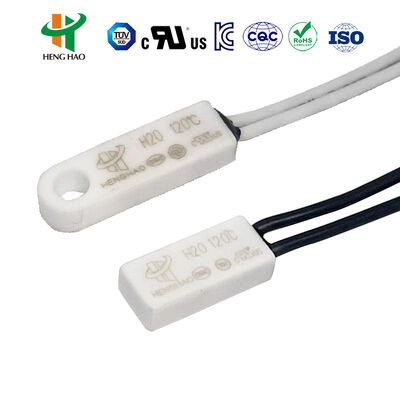

Case: Metal case and plastic case
Life: ≥10,000 times

Model	L(mm)	W(mm)	H(mm)	Electrical Rating	Lead Wire (mm)
BW metal	20	7.5	3.8	5A/250V;10A/250V	AWG#22,AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer's requirement
BW metal	20	8.0	4.1	16A/250V	AWG#22,AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer's requirement
BW plastic	20	8.0	4.0	5A/250V;10A/250V	AWG#22,AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer's requirement

Open Temperature and Reset Temperature

Code	Open Temp.	Reset Temp.	Code	Open Temp.	Reset Temp.
40	40℃±5℃	≥30℃	100	100℃±5℃	70±10℃
45	45℃±5℃	≥30℃	105	105℃±5℃	70±12℃
50	50℃±5℃	≥30℃	110	110℃±5℃	75±12℃
55	55℃±5℃	≥30℃	115	115℃±5℃	80±12℃
60	60℃±5℃	40±10℃	120	120℃±5℃	85±12℃
65	65℃±5℃	45±10℃	125	125℃±5℃	90±12℃
70	70℃±5℃	50±10℃	130	130℃±5℃	95±12℃
75	75℃±5℃	55±10℃	135	135℃±5℃	100±12℃
80	80℃±5℃	60±10℃	140	140℃±5℃	105±12℃
85	85℃±5℃	65±10℃	145	145℃±5℃	110±12℃
90	90℃±5℃	70±10℃	150	150℃±5℃	115±12℃
95	95℃±5℃	75±10℃

Competitive Advantages

Small size and easy installation
Quick bimetallic strip, fast reaction
Life time higher than 10,000 cycles
Prevention against vacuum impregnation process leaks
Replacement for SENSATA 17AM 7AM, SEKI ST-22 etc.

BW Series Technical Drawings
