KSD301 125V 250V Adjustable Snap Action Temperature Switch

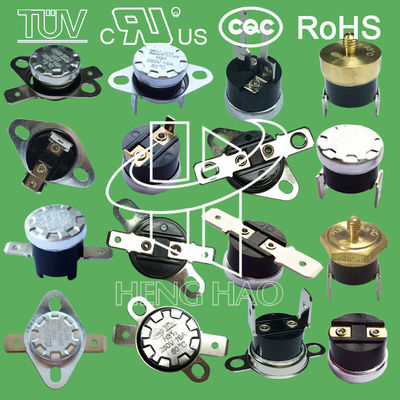

Large Image : KSD301 125V 250V Adjustable Snap Action Temperature Switch

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	HENGHAO
Certification:	UL CQC TUV ROHS
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	US$0.2-0.3 PER PC
Packaging Details:	1650 PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ
Supply Ability:	1000000PCS PER MONTH

Contact Now

KSD301 125V 250V Adjustable Snap Action Temperature Switch

Description

Product Name:	Snap-action Thermostat	Electric Rated:	16A/250V 15A/125V 10A/250V
Operation Temp:	40-250℃	Tolerance:	±10℃ Or Customized
Material:	Ceramic	Power Source:	Electric
Current:	MAX25A	Warranty:	1 Year
Highlight:	250V Snap Action Temperature Switch , KSD301 Snap Action Temperature Switch , 125v snap switch thermostat

Adjustable Snap Action Temperature Switch KSD301 125V 250V with UL TUV CQC ROHS certificated

Description

Ksd301 bimetal disc thermal switch is a round shape product, it is snap action and can be auto reset or manual reset. it mainly used in coffee boil and water heater, the housing of this bimetal thermal protector can be bakelite or ceramic,high quality product and competitive price is a good choice for you.

Technical Parameters

1.Rated Voltage/Current: AC250V/5A-16A
2.OFF: 40℃~200℃
3.ON:≥-10±6℃
4.Cap code:Y(Without plate)

5.Terminal code:187-1
6.Dielectric Strength: AC1,500V for 1 minute.
7.Insulation Resistance: ≥5MΩ(at DC500V)
8.Contact Resistance: ≤50mΩ
9.Hea-Resistant Spec: PF180℃
10.Service Life≥50000times .

Application

1.Water heater and coffee boil
2.Other heating elements

Open temperature & reset temperature

1. According to customer’s request to set the open temperature and reset temperature.

2. The standard open temperature and reset temperature’s sheet for auto reset type as below

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃+-5℃	5℃+-5℃	95℃+-5℃	80℃+-5℃	205℃+-5℃	175℃+-10℃
-15℃+-5℃	5℃+-5℃	100℃+-5℃	80℃+-10℃	210℃+-5℃	180℃+-10℃
-10℃+-5℃	5℃+-5℃	105℃+-5℃	85℃+-10℃	215℃+-5℃	185℃+-10℃
0℃+-5℃	-10℃+-5℃	110℃+-5℃	90℃+-10℃	220℃+-5℃	190℃+-10℃
5℃+-5℃	-5℃+-5℃	115℃+-5℃	95℃+-10℃	225℃+-5℃	195℃+-10℃
10℃+-5℃	0℃+-5℃	120℃+-5℃	100℃+-10℃	230℃+-5℃	200℃+-10℃
15℃+-5℃	5℃+-5℃	125℃+-5℃	105℃+-10℃	235℃+-5℃	205℃+-10℃
20℃+-5℃	5℃+-5℃	130℃+-5℃	110℃+-10℃	240℃+-5℃	210℃+-10℃
25℃+-5℃	10℃+-5℃	135℃+-5℃	115℃+-10℃	245℃+-5℃	215℃+-10℃
30℃+-5℃	15℃+-5℃	140℃+-5℃	120℃+-10℃	250℃+-5℃	220℃+-10℃
35℃+-5℃	20℃+-5℃	145℃+-5℃	125℃+-10℃	255℃+-5℃	225℃+-10℃
40℃+-5℃	25℃+-5℃	150℃+-5℃	130℃+-10℃	260℃+-5℃	230℃+-10℃
45℃+-5℃	30℃+-5℃	155℃+-5℃	130℃+-10℃	265℃+-5℃	235℃+-10℃
50℃+-5℃	35℃+-5℃	160℃+-5℃	135℃+-10℃	270℃+-5℃	240℃+-10℃
55℃+-5℃	40℃+-5℃	165℃+-5℃	140℃+-10℃	275℃+-5℃	245℃+-10℃
60℃+-5℃	45℃+-5℃	170℃+-5℃	145℃+-10℃	280℃+-5℃	250℃+-10℃
65℃+-5℃	50℃+-5℃	175℃+-5℃	150℃+-10℃	285℃+-5℃	255℃+-10℃
70℃+-5℃	55℃+-5℃	180℃+-5℃	155℃+-10℃	290℃+-5℃	260℃+-10℃
75℃+-5℃	60℃+-5℃	185℃+-5℃	155℃+-10℃	295℃+-5℃	265℃+-10℃
80℃+-5℃	65℃+-5℃	190℃+-5℃	160℃+-10℃	300℃+-5℃	270℃+-10℃
85℃+-5℃	70℃+-5℃	195℃+-5℃	165℃+-10℃
90℃+-5℃	75℃+-5℃	200℃+-5℃	170℃+-10℃

KSD301 125V 250V Adjustable Snap Action Temperature Switch 0
