Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A

Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A
Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A

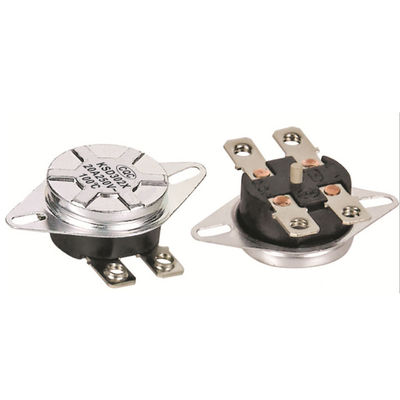

Large Image :  Home Appliance KSD302 Bimetal Thermostat Switch 250V 25A

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD302
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000 PCS PER MONTH
Detailed Product Description
Type: Other Home Appliance Parts Product Name: KSD302 Bimetal Thermostat
Current: 15-60A Voltage: 250V
Working Temperature: 75~185 ℃,0~260 ℃ Material: Plastic Or Metal
Life Cycle: 30000 Times Certification: CQC UL VDE TUV
High Light:

KSD302 Bimetal Thermostat Switch

,

Bimetal Thermostat Switch 250V

,

KSD302 Thermostat 25A

KSD302 Bimetal Thermostat Switch 250V 25A Thermostat Ksd



KSD302 large current thermostat / KSD302 large current thermal protector



Description:



KSD302 series snap-action thermostat is a kind of hermetically sealed bimetal thermal protector (7/8" disc). It is of single-pole single-throw structure and works under resistive load. Owing to high loading coveracity, the product series is appropriately used in high-duty electric appliances to provide overheating protection.



Advantages:



Water proof.



High precision.



High durability.



Rapid heat transmission.



No breakdown, no flashover.



Every product will be tested, extremely high temperature pass rate.



KSD302 large current thermostat’s specification



(1) Function: temperature protection and overheating protection, prevent dry heating

(2) The electrical characteristics: AC250V ~ 400 V / 15 A ~ 60 A

(3) the highest environment temperature: 180 °C

(4) working temperature range: 0 °C ~ 250 °C (optional). Temperature tolerance: +- 5

(5) Normal headscarf insulation resistance: > 100 M Ω

(6) normal contact resistance: more than 100 m Ω

(7) service life: > 50000 times



Application of KSD302 large current temperature protector



(1) Electric welding machine, electric

(2) Electric equipment,

(3) Electric products,

(4) Steam heater

(5) High power machinery equipment

(6) Demand Water Heaters



Attention of KSD302 large current thermostat



(1) By using the contact temperature type when installed, should make metal cap surface adhere is accused of mounting surface of the appliance.

(2) When installation shall not cover surface pressure deformation, lest affect performance.

(3) To prevent leakage, when using, can't let the fluid infiltration within the thermostat, lest affect electric reliability.

(4) This product for bipolar type wiring way, when using, according to mark symbol, correct connection.

The product should be a headscarf in relative humidity is less than 90%, the environment temperature below 40 ℃ ventilation, clean, dry, no corrosive gas storage in the warehouse.
