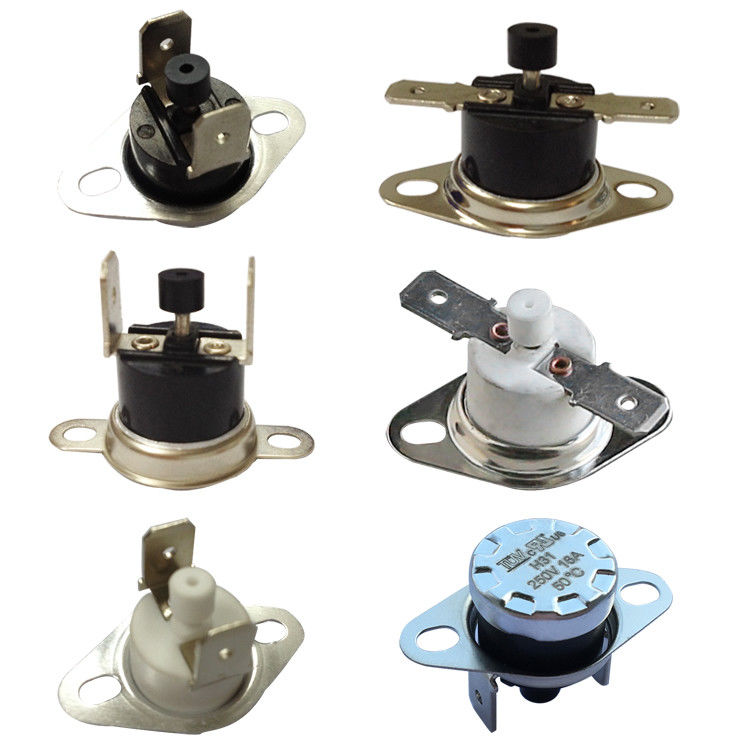

Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c

Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c
Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c

Large Image :  Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c

Product Details:
Place of Origin: China
Brand Name: HENG HAO
Model Number: ksd301
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.25/pieces 1000-4999 pieces
Packaging Details: 100 pcs per pvc box<br>2000 pcs per carton<br>75 pcs per pvc box <br>1500 pcs per carton<br>50 pcs per pvc box<br>1000 pcs per carton
Detailed Product Description
Type: Switch Snap Action Application: Household Applicance
Supplier Type: Original Manufacturer Cross Reference: Ksd302
Media Available: Datasheet, Photo Brand: Manual Reset Thermostat
Mounting Feature: Back Or Front Of Panel Size / Dimension: 3*2*2
Operating Temperature: 0-250 Degree Switch Function: On-off
Current Rating (Amps): 10A-16A Voltage Rating - AC: 250V
Voltage Rating - DC: 24V Voltage: 24 ~ 240V
Electrical Rating: 250V 10A-16A Temperature Range: 0-280 Celsius Degree
Life Cycle: 100000times Reset Type: Manual Reset
Port: ANY PORT FROM SHENZHEN
High Light:

AC 125V Bimetallic Thermostat Switch

,

Manual Reset Bimetallic Thermostat Switch

,

Bimetallic Mini Thermal Switch

Manual Reset Over Heat Thermal Switch, Manual Reset Bimetallic Thermostat Ksd301 250v 16a 50-180c
. KSD301(H31) temperature protector’s Principle and structure
The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.
2. KSD301 (H31) thermostat’s specification
2.1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2.2. Action Temperature: -10~300 degree
2.3. Recovery and action temperature difference: 10 to 25 degrees, or according to client's request.
2.4. Temperature deviation: +-3 / +-5 / +-10 degree or according to client's request
2.5. Circuit resistance: 50mΩ (Initial value)
2.6. Insulation resistance:100mΩ (DC500V Normal State)
2.7. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle: ≥100000
2.8. Normally closed or open
2.9. Two kinds of mounting bracket: movable or immovable
2.10. Terminal
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
2.11. Two kinds of body: plastic or ceramic.
2.12. Two kinds of temperature sensor face: aluminium cap or copper head.

3. Difference of auto reset type and Manual reset type
3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
3.2. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
4. KSD301 (H31) bimetal thermostat’s Application
It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.

Open temperature & reset temperature

  1. 1.       According to customer’s request to set the open temperature and reset temperature.
  2. 2.       The standard open temperature and reset temperature’s sheet for auto reset type as belowManual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c 0Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c 1Manual Reset Over Heat Thermal Bimetallic Thermostat Switch 250v 16a 50-180c 2
