Product Details:
|
| After-sales Service Provided: | None | Warranty: | None |
|---|---|---|---|
| Type: | Other Home Appliance Parts | Application: | Household |
| Power Source: | Electric | Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Action Temperature: | 0 To 25 Degrees, Or According To Client's Request. | Temperature Deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Circuit Resistance: | ≤50mΩ (Initial Value) | Insulation Resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Life Cycle: | ≥100000 Times | Contact Type: | Normally Closed Or Normally Open |
| Two Kinds Of Mounting Bracket: | Movable Or Immovable | House: | Plastic Or Ceramic. |
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | Port: | Guangzhou |
| High Light: | Household Ksd301 Bimetal Thermostat,Copper Head Ksd301 Bimetal Thermostat,16A 250V Temperature Controller |
||

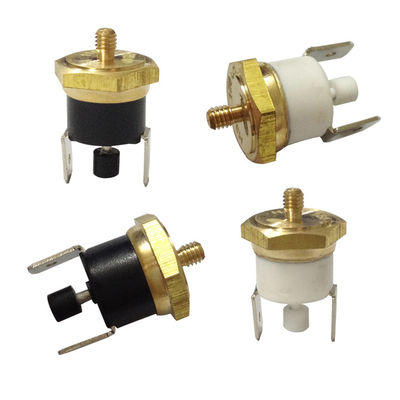

China Factory Durable Copper Head Ksd301 Bimetal Thermostat 16A 250V Temperature Controller
|
Voltage & Current
|
AC 125V max 15A; AC250V 5A 10A 15A max 16A
|
|
Action Temperature
|
0 to 25 degrees, or according to client's request.
|
|
Temperature deviation:
|
±3 / ±5 / ±10 degree or according to client's request
|
|
Circuit resistance
|
≤50mΩ (Initial value)
|
|
Insulation resistanc
|
AC50Hz 1500V / min, no breakdown blinding (Normal State)
|
|
Life cycle
|
≥100000 times
|
|
Contact type
|
Normally closed or Normally open
|
|
Two kinds of mounting bracket
|
movable or immovable
|
|
Terminal type
|
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional |
|
House
|
plastic or ceramic.
|
|
Temperature sensor face
|
aluminum cap or copper head.
|
|
Use for
|
It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters,
laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc. |
|
Certificate approved
|
UL CQC TUV KC ROHS
|
