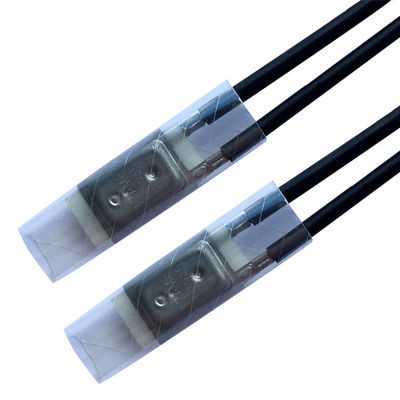

17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat

17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat
17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat

Large Image :  17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat

Product Details:
Place of Origin: China
Brand Name: HENGHAO
Model Number: 17am
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.25/pieces 1000-4999 pieces
Packaging Details: 100 pcs per bag<br>4000 pcs per carton
Supply Ability: 5000000 Piece/Pieces per Month

17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat

Description
Type: Switch Snap Action Application: Light, Motor,pump
Supplier Type: Original Manufacturer Cross Reference: 17amc
Media Available: Datasheet, Photo, EDA/CAD Models Brand: Thermal Protector
Mounting Feature: Back Or Front Of Panel Size / Dimension: 21*10.5*5.6mm
Operating Temperature: 50-180 Degree Centigrate Voltage Rating - AC: 250
Voltage: 24 ~ 240V Electrical Rating And Currents: AC-125V 15A;AC-250V 10A;DC-16V 20A
Temperature Range: 50-180 Celsius Degree Life Cycle: 10000 Times
Reset Type: Automatically Reset Port: Any Port From Shenzhen
Highlight:

15A Thermal Cutout Switch

,

17AM Thermal Cutout Switch

,

PTC Manual Reset Thermostat

17AMH Thermal protector / 17AMH Thermostat

17AMH thermostat’s Principle and structure

17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AMH+ PTC thermal protection, in 17AMH thermal protector on the base of the PTC heating element is installed inside, due to the electrical work is not normal, causes the surrounding temperature, when the heat reaches disconnect the temperature protector, bimetallic strip quickly jump action, make the two off contact, to cut off the circuit. While at the same time due to the broken touch point on the voltage applied to the PTC heating elements, generate enough heat to keep bimetallic strip continue to jump, only when to cut off the power supply can contact closure.

  1. 1.     17AM thermal protector’s Specification

1.1.Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

1.2.Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

1.3.Operating temperature range: 50-180°C

1.4.Temperature tolerance: +-2°C, +-3°C, +-5°C

1.5.Reset temperature: 10~45 degrees in off temperature decline.

1.6.Working times: Over 10000 times

1.7.Code syste

17AM  XXX  A / B  5  A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

1.8.Trip off temperature in °CCode

Degrees °C

Code

Degrees °C

Code

Degrees °C

Code

Degrees °C

Code

55°C

018

90°C

025

125°C

032

160°C

039

60°C

019

95°C

026

130°C

033

165°C

040

65°C

020

100°C

027

135°C

034

170°C

041

70°C

021

105°C

028

140°C

035

175°C

042

75°C

022

110°C

029

145°C

036

180°C

043

80°C

023

115°C

030

150°C

037





85°C

024

120°C

031

155°C

038









17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 0



  1. 2.   17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & several of household appliances

  1. 3.     17AM thermostat’s A/°C and A/T Graph:



The product UL,CQC,VDE and RoHS certification approval.17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 1



KLIXON SENSATA 7AM / 17AM Thermal protector



1. KLIXON 17AM protector’s Principle and structure

KLIXON 17AM Thermal protector works: current through KLIXON bimetal and two contacts, When the appliance is not working properly, so that the ambient temperature or current is too high, to protect the device when the heat escape temperature, the bimetallic reed was quick action, so cut off the circuit. When the temperature dropped to reset temperature, KLIXON? Bi-metal springs and quickly closed.

2. KLIXON 17AM thermal protector’s application

17AM thermal protection suitable for a wide range of applications, reliable performance. It is a tiny, fast moving, hot mobile device. In the field of thermal protection technology, it is a widely used to protect components. For motors, pumps, transformers, lighting, equipment and similar electric appliances ... over-temperature, or thermal protection.

3. 17AM thermal protector’s specification

 large number of temperature specifications, 60 ... 160 +- 5 (each 5 one specification)
 Contact capacity: 9A / 250 V - AC, 22A / 115 V - AC ....
 have a sensor temperature and current performance of the action of the double
 Stainless steel shell with liner, for the vast majority of Chak-dip process
 according to customer's specifications and needs of a variety of riveting wire length

 Product size: 23 x 10 x 4.6mm

4. Product code and temperature compare sheet.                5. Product Drawing

17AM Code and Open temp. compare sheet

  Temperature tolerance ± 5

Code No

Open temperature

17AM020A5

65℃+-5℃

17AM021A5

70℃+-5℃

17AM022A5

75℃+-5℃

17AM023A5

80℃+-5℃

17AM024A5

85℃+-5℃

17AM025A5

90℃+-5℃

17AM026A5

95℃+-5℃

17AM027A5

100℃+-5℃

17AM028A5

105℃+-5℃

17AM029A5

110℃+-5℃

17AM030A5

115℃+-5℃

17AM031A5

120℃+-5℃

17AM032A5

125℃+-5℃

17AM033A5

130℃+-5℃

17AM034A5

135℃+-5℃

17AM035A5

140℃+-5℃

17AM036A5

145℃+-5℃

17AM037A5

150℃+-5℃



17AM Thermal Cutout Switch , 17AM PTC Manual Reset Thermostat 2
