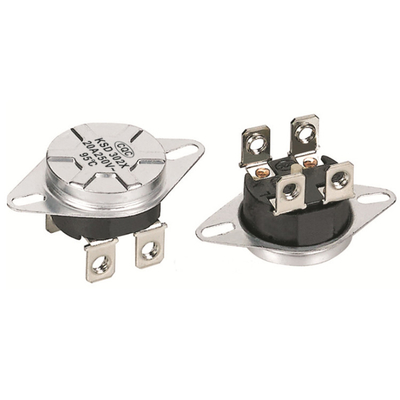

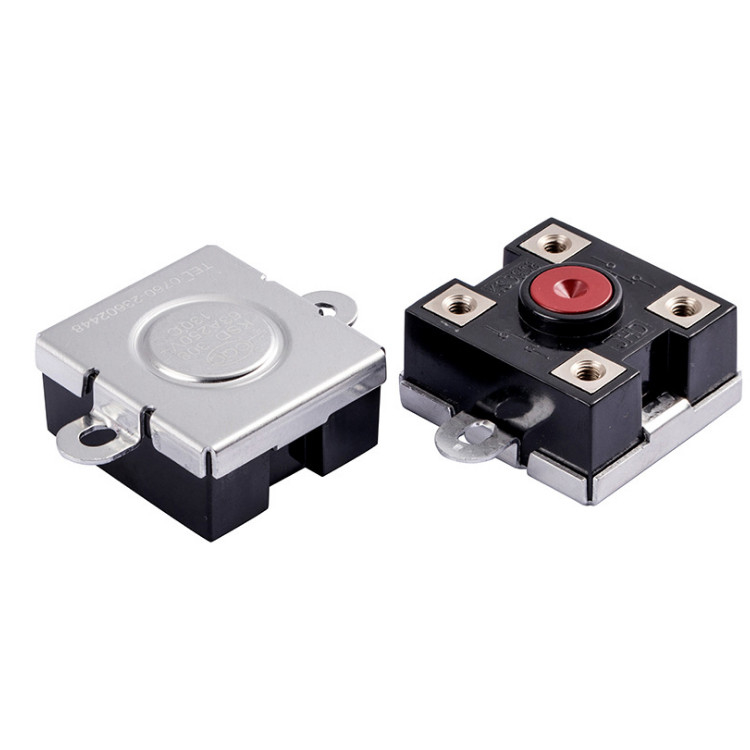

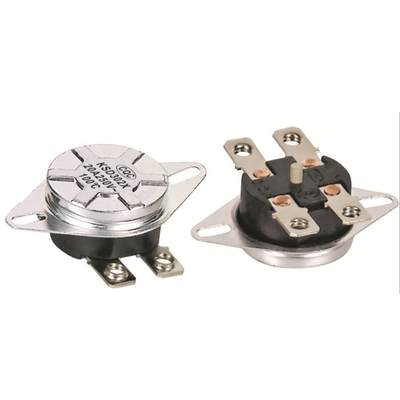

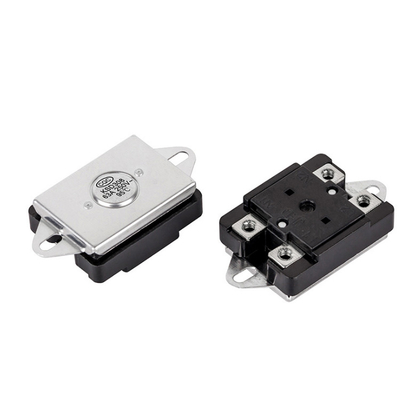

Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery

 Bipolar Temperature Control Thermal Switch KSD303 For High Power Machinery Equipment

KSD303 series bipolar thermostat’s Principle and structure

KSD303 is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.

KSD303 Bipolar Thermostat technology specification:

Rating Voltage: 250V

Rating Current: 15A (resistance load), Max. Current: 20A

Action Temperature: 50~200 degree

temperature accuracy: ± 2 ± 3 ± 5 ± 10 ℃

Life-span: 10,000 cycles

Contact Resistance:

Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover

Insulation resistance:

The chart of structure and dimension

KSD303 bipolar thermostat’s application

KSD303 is used for instant electric water heater, electric heating equipment, electric welding machine, steam heater, high power machinery and equipment and electric products etc

KSD303 bipolar thermostat’s drawing
