Alarm Devices Mini Resettable Thermal Fuse 250V 30 To 150 Degree

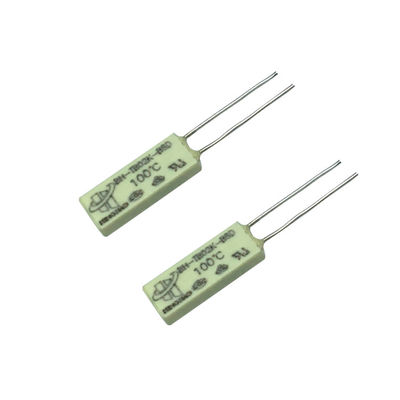

Large Image : Alarm Devices Mini Resettable Thermal Fuse 250V 30 To 150 Degree

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HENGHAO
Model Number:	BH-TB02B-B8D

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.25/pieces 1000-4999 pieces
Packaging Details:	100 pcs per bag<br>5000 pcs per carton

Contact Now

Alarm Devices Mini Resettable Thermal Fuse 250V 30 To 150 Degree

Description

Contact Type:	Normally Closed & Normally Open	Temperature Deviation:	±3°C / ±5°C / ±7°C
Life Cycle:	10000times	MOQ:	1000PCS
Payment Method:	TT Or Negotiate Payment Term	Delivery Time:	7 To 15 Working Days
Model:	BH-TB02B-B8D	Raw Material:	Sliver, Copper, Plastic, Metal, Bimetallic Disc
Electrical Rating:	DC-12V Max 12A; DC-24V Max 10A; AC-125V Max 8A; AC-250V 5A	Circuit Resistance:	≤50mΩ (Initial Value)
Highlight:	KSD301 Temperature Protector , Mini Resettable Thermal Fuse , 250V Resettable Thermal Fuse

Alarm Devices Mini Temperature Protector Resettable Thermal Fuse 250V30 To 150 Degree

Electrical Rating	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V 5A
Action Temperature range	(30~150)±5°C; 5°C a step
Recovery and action temperature difference	Operating temperature decrease by 15-45°C
Temperature deviation	±3°C / ±5°C / ±7°C
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	≥100mΩ (DC500V Normal State)
Dielectric Strength	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	10000 times
Delivery time	7 to 15 working days
MOQ	1000PCS
Contact type	Normally closed & Normally open
Scope of application	BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.

Alarm Devices Mini Resettable Thermal Fuse 250V 30 To 150 Degree 0

ksd301 thermal switch,

bimetal snap disc thermostat,

ksd301 temperature switch
