Bimetallic Thermostat Controller Thermal Cut-off Switch Ksd301 250V 10A 16A 0 to 250 Degree with TUV CQC UL ROHS
| Electrical Rating |
AC-250V 10A; AC-125V 16A |
| Action Temperature range |
45~160℃ (one step for every 5°C) |
| Recovery and action temperature difference |
operating temperature decrease by 15-45°C |
| Temperature deviation |
±3°C / ±5°C / ±7°C |
| Circuit resistance |
≤50mΩ (Initial value) |
| Insulation resistance |
≥100mΩ (DC500V Normal State) |
| Dielectric Strength |
AC50Hz 1500V / min, no breakdown blinding (Normal State) |
| Life cycle |
10000 times |
| Contact type |
Normally closed |
| MOQ |
1000PCS |
| Delivery time |
7 to 15 working days |
| payment method |
TT or negotiate payment term |
| Scope of application |
RS03 thermostat is applicable to the thermal radiation control on various electric heating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc. |
1. RS-03 thermal protector’s Principle and structure
RS-03 snap action thermostat is small-size bimetal thermostat series with a metal cap, which belongs to thermal relays ’family. The main principle is that one function of bimetal discs snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, then caused on of off of the circuit finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, longer working life and less radio interference.
2. RS-03 thermostat’s Specification
2.1.Electrical rating and current: AC-250V 10A; AC-125V 16A
2.2.Normally Closed, automatically reset
2.3.Operating temperature range: 40-160°C (one step for every 5°C )
2.4.Temperature tolerance: ±3°C±5°C
2.5.Reset Temperature range: operating temperature decrease by 15~45°C
2.6.Contact Closure resistance: ≤50mΩ
2.7.Insulation resistance: ≥100mΩ
2.8.Life cycles: 10000 times
3. Additional Table: Rated open temperature & Reset Temperature table
|
Open Temp.
|
Reset Temp.
|
Open Temp.
|
Reset Temp.
|
|
45±5℃
|
25~38℃
|
105±5℃
|
55~95℃
|
|
50±5℃
|
30~45℃
|
110±5℃
|
60~100℃
|
|
55±5℃
|
35~50℃
|
115±5℃
|
60~105℃
|
|
60±5℃
|
35~55℃
|
120±5℃
|
65~110℃
|
|
65±5℃
|
35~60℃
|
125±5℃
|
65~115℃
|
|
70±5℃
|
40~65℃
|
130±5℃
|
70~120℃
|
|
75±5℃
|
40~65℃
|
135±5℃
|
70~125℃
|
|
80±5℃
|
45~70℃
|
140±5℃
|
75~130℃
|
|
85±5℃
|
45~75℃
|
145±5℃
|
75~135℃
|
|
90±5℃
|
50~80℃
|
150±5℃
|
80~140℃
|
|
95±5℃
|
50~85℃
|
155±5℃
|
80~145℃
|
|
100±5℃
|
55~90℃
|
160±5℃
|
85~150℃
|
|
The specification can also be manufactured as request. ,Reset temperature lists only for reference
|
4. RS03 thermal protector’s Application
RS03 thermostat is applicable to the thermal radiation control on various electric heating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc.

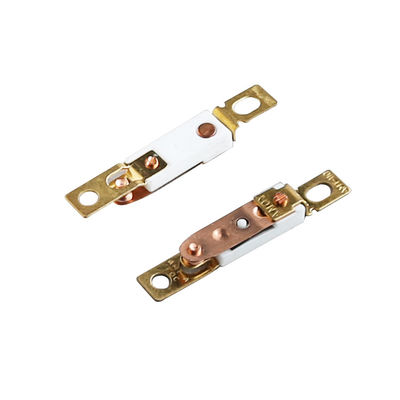

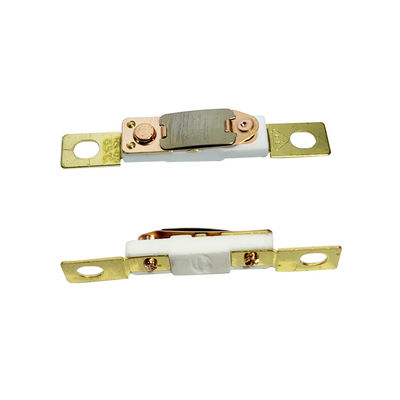

5. RS03 temperature switch’s Product Drawing
