JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse

JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse
JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse
JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse

Large Image :  JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: JUC-31F
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.16
Packaging Details: 2000pcs /carton
Delivery Time: 10~15workdays
Payment Terms: T/T
Supply Ability: 10000000PER MONTH

JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD-01F Temperature Controller Switch

,

Temperature Thermostat Controller Switch

,

JUC-31F Thermostat Switch

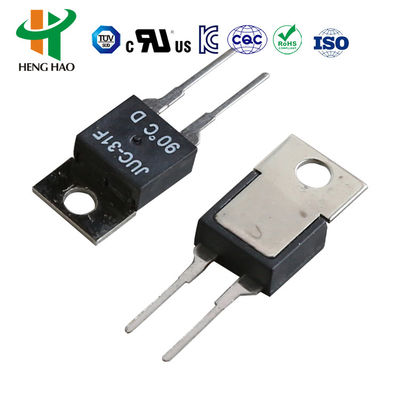

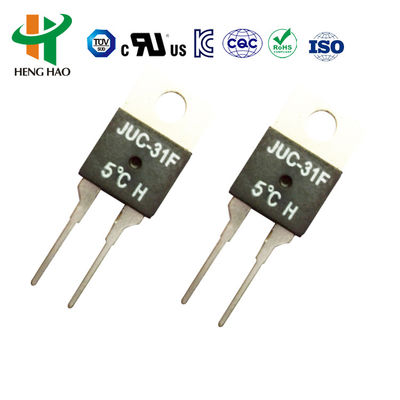

JUC-31F Thermostat / JUC-31F thermal protector / JUC-31F temperature protector

The product is a sensor of belonging to touch-type plastic Snap temperature thermostat ,the adoption of international TO220/Y220 standard package ,the product has high reliability ,sensitive and accurate ,small size ,light weight ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification

2.1. Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A

2.2. Contact type : ID (closed)H(open)

2.3. Temperature

Operating temperature/°C Recovery temperature/°C(lower than Operating temperature) Error Testing way (Speed of temperature rise and fall)
0~99 5~35 ±3°C 1°C/min
100~130 7~40 ±5°C

2.4. Overheating temperature:250 degrees

2.5. Contact resistance: less than 50mΩ

2.6. Insulation resistance : more than 100 mΩ

2.7. Dielectric withstand voltage: more than 1500V

2.8. Product life: more than 10000 times

2.9. Weight:1.7 g

2.10. Action temperature deviations:+-5 degrees

JUC-31F Thermostat KSD-01F Temperature Controller Switch Auto Reset Thermal Fuse 0

















3. JUC-31F min temperature protector’s Application

JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection..



The product UL,CQC,VDE and RoHS certification approval.

Thermostat, thermal protector supplier, thermal protector, Thermostat supplier

Thermostat manufacturer





17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8. Trip off temperature in °C Code

Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038

2.9. Product Drawing



3. 17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4. 17AM thermostat’s A/°C and A/T Graph:
