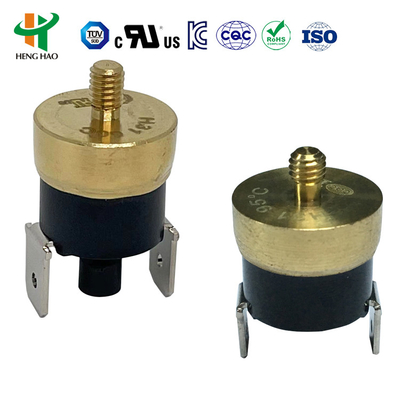

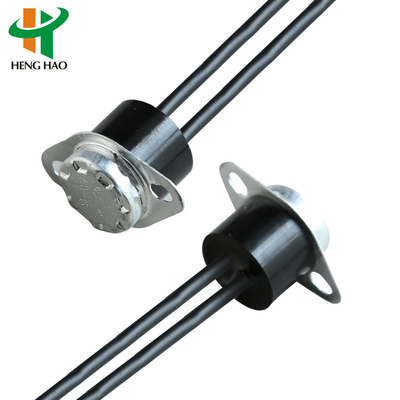

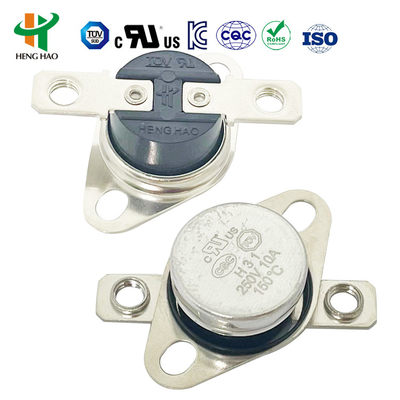

KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision

KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision
KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision
KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision

Large Image :  KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.15
Packaging Details: 2100PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PER MONTH
Contact Now

KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

KSD201bimetallic thermostat

,

KSD301 temperature controlled switch

,

KSD301-G thermostat

Thermal Switch KSD301-G Thermostat KSD201 Bimetallic Thermostat KSD301 Temperature Controlled Switch
KSD301 Temperature Protector Principle and Structure

The KSD series thermostat operates on the principle of a bimetallic disc that snaps into action when temperature changes occur. This snap action activates internal contacts, either opening or closing the circuit. Key characteristics include fixed working temperature, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

KSD Bimetal Thermostat Thermal Switch with 100000 Cycles 0~250℃ Range and ±3/±5/±10 Degree Precision 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100000 times
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Difference Between Auto Reset and Manual Reset Types

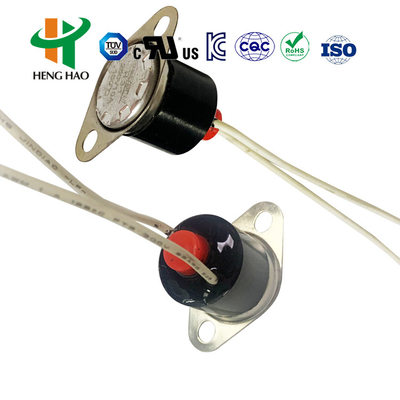

Manual Reset Type: Uses a bimetallic strip that disconnects at the action temperature. Requires manual reset by pressing a button after temperature decreases by 20°C. Requires 4-6N force for reset.

Auto Reset Type: Uses a bimetallic strip that automatically resets when temperature decreases to the reset point.

KSD301 Bimetal Thermostat Applications

Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.

Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
Or according to client's request

This product has UL, CQC, TUV and RoHS certification approval.
