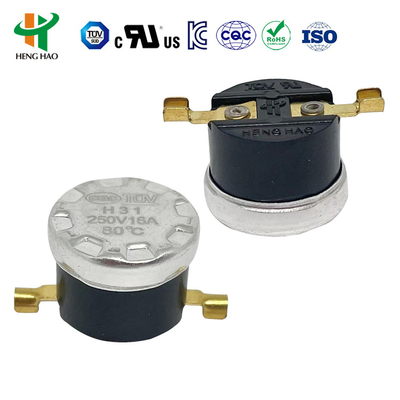

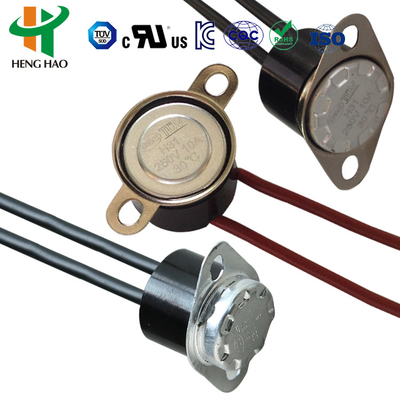

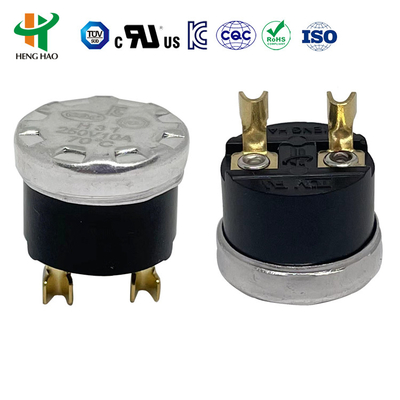

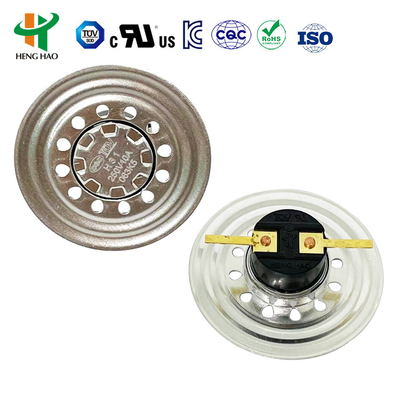

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.3PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10workdays
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 bimetallic thermostat

,

KSD201 bimetallic thermostat

,

KSD301-R temperature controller

KSD301 Thermostat KSD201 Bimetallic Thermostat KSD301-R Temperature Controller
Product Overview

The KSD301 temperature protector operates on the principle of bimetallic discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, long lifespan, and low radio interference.

KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25°C (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open

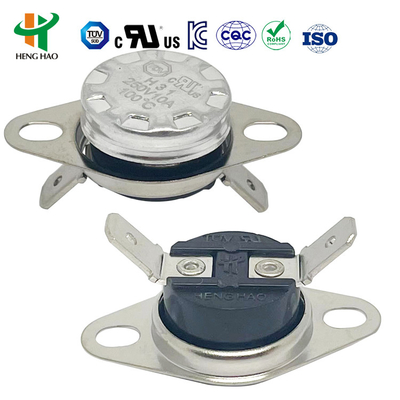

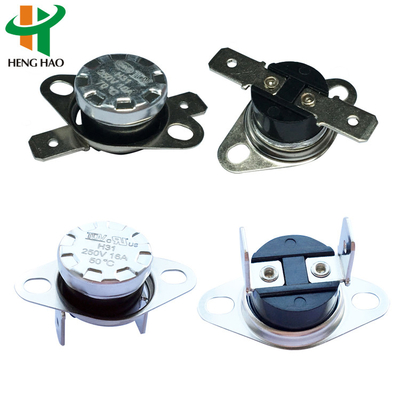

Mounting Options Movable or fixed bracket
Terminal Configuration 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic

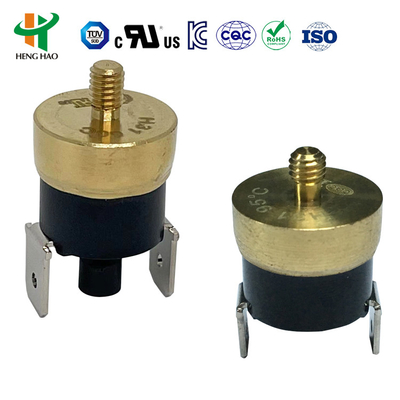

Sensor Face Aluminum cap or copper head
Reset Types

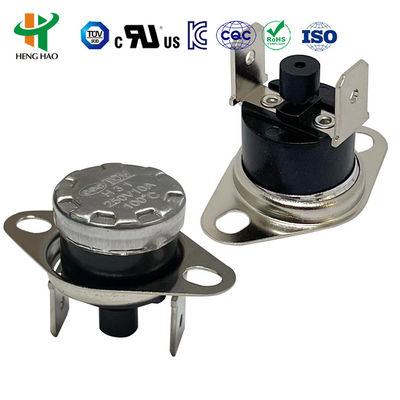

Manual Reset: Requires button press to reconnect circuit after temperature drops ~20°C from trip point (4-6N force recommended).

Auto Reset: Automatically reconnects when temperature returns to specified level.

Note: For manual reset models, maintain ≥20.4mm clearance between reset button and cover.

Applications

Ideal for temperature control in household appliances including:

  • Coffee makers
  • Toasters
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
  • Laminators
  • Space heaters
Temperature Settings (℃)
Open Temp Reset Temp Open Temp Reset Temp Open Temp Reset Temp
-20±5 5±5 95±5 80±5 205±5 175±10
-15±5 5±5 100±5 80±10 210±5 180±10
-10±5 5±5 105±5 85±10 215±5 185±10
0±5 -10±5 110±5 90±10 220±5 190±10
5±5 -5±5 115±5 95±10 225±5 195±10
Custom temperature settings available upon request
KSD301 Bimetallic Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1

Certifications: UL, CQC, TUV, RoHS compliant
