KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

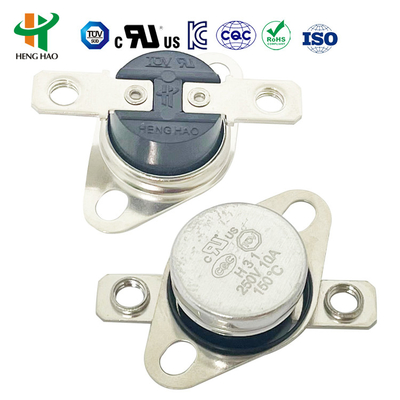

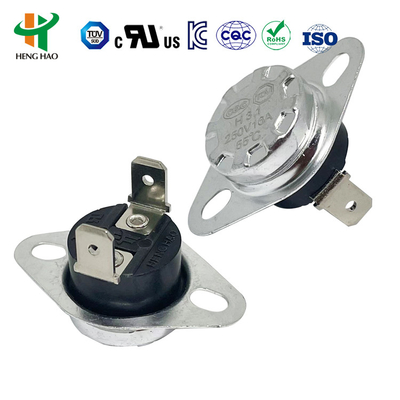

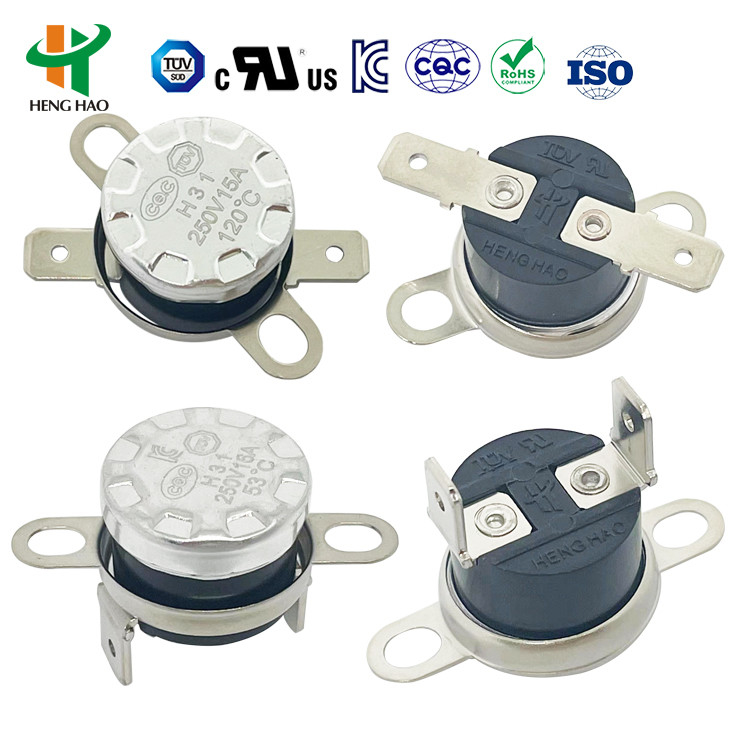

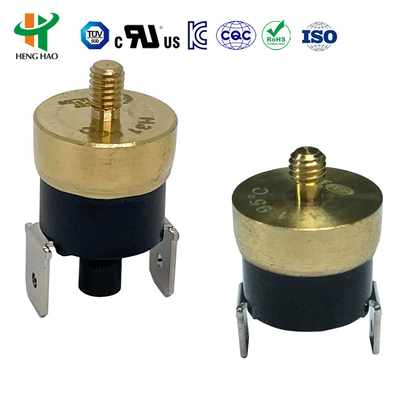

Large Image : KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.1
Packaging Details:	2100PCS/CARTON
Delivery Time:	5~8WORKDAYS
Payment Terms:	T/T
Supply Ability:	1000000PER MONTH

Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	KSD301 thermal fuse , KSD301 snap-action thermostat

KSD301 Thermal Fuse - Temperature Controlled Snap-action Thermostat

Product Overview

The KSD301 temperature protector operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits reliably with minimal flashover and radio interference.

Technical Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery/Action Temp Difference	0 to 25 degrees (customizable)
Temperature Deviation	±3/±5/±10°C (customizable)
Circuit Resistance	≤50mΩ (Initial value)
Insulation Resistance	AC50Hz 1500V/min, no breakdown
Life Cycle	≥100,000 operations
Contact Type	Normally closed or Normally open
Mounting Options	Movable or immovable bracket

Reset Types

Manual Reset: Requires button press to reconnect circuit after temperature drops 20°C from trip point (4-6N force recommended)
Auto Reset: Automatically reconnects circuit when temperature drops to reset point

Temperature Settings

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃

Applications

Widely used in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, irons, warmers, microwave ovens, and water dispensers.

Certifications: UL, CQC, TUV and RoHS approved
