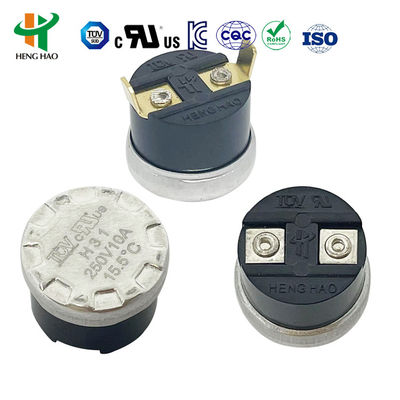

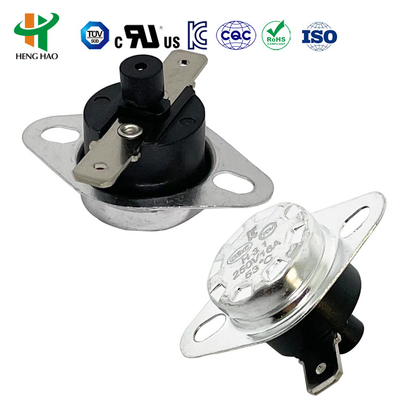

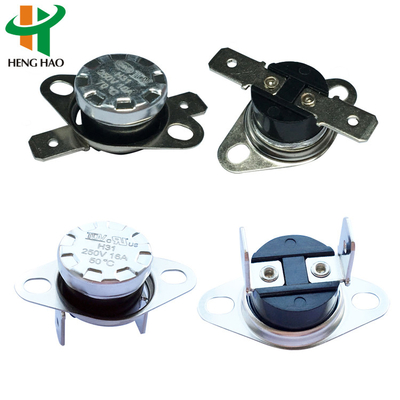

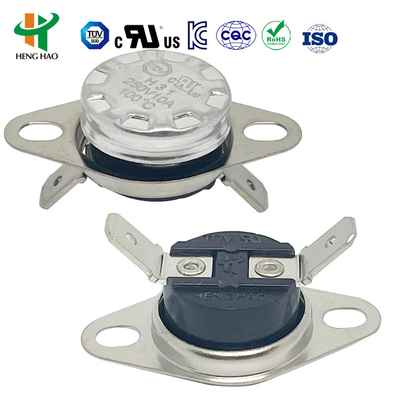

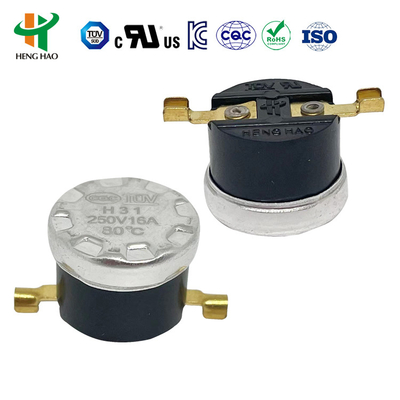

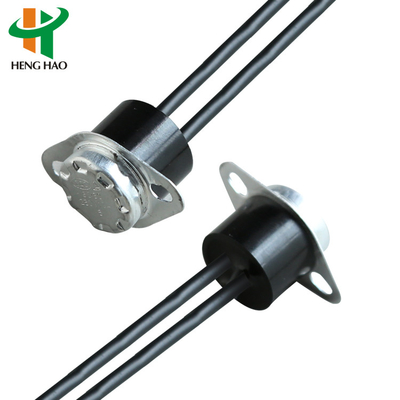

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

Large Image :  KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCW
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~10WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 temperature controller

,

KSD301 thermostat

,

temperature controlled switch

KSD301 Temperature Controller Thermostat
Product Overview

The KSD301 temperature protector operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, long lifespan, and low radio interference.

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control 0
Technical Specifications
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Options Movable or fixed bracket
Terminal Types 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Reset Types

Manual Reset: Requires button press to reconnect circuit after temperature drops ~20°C from trip point (4-6N force recommended).

Auto Reset: Automatically reconnects circuit when temperature drops to reset point.

Applications

Widely used in household appliances including:

  • Coffee makers
  • Toasters
  • Laminators
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
Custom temperature settings available per client requirements
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control 1
Certifications: UL, CQC, TUV and RoHS compliant
