KSD-01F Auto Reset Thermostat with 0-250℃ Range and 100000 Cycles for PCB Circuit Board

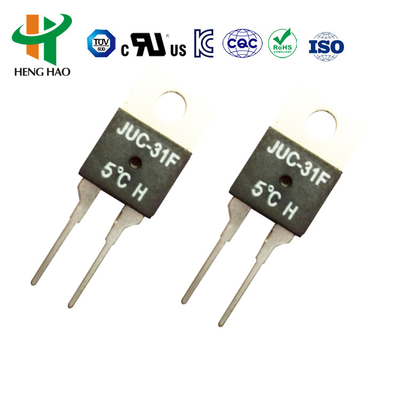

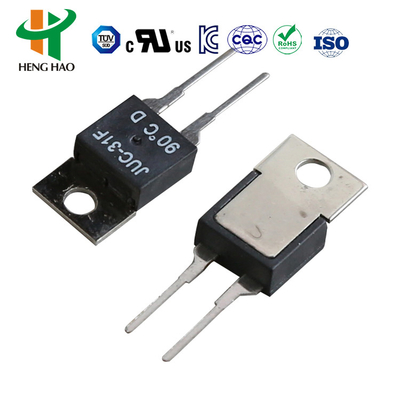

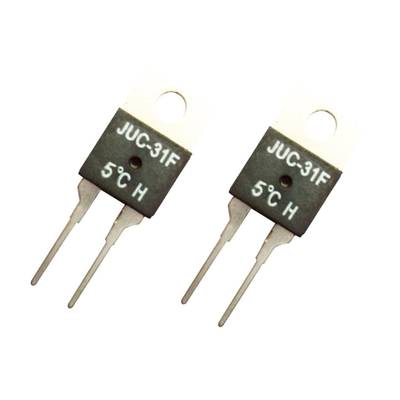

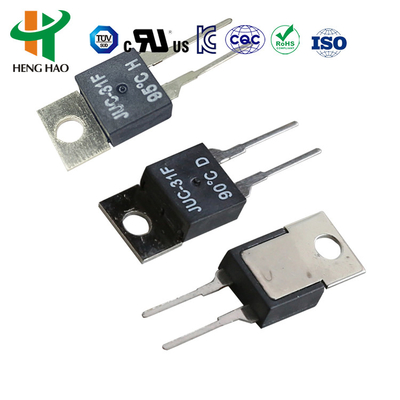

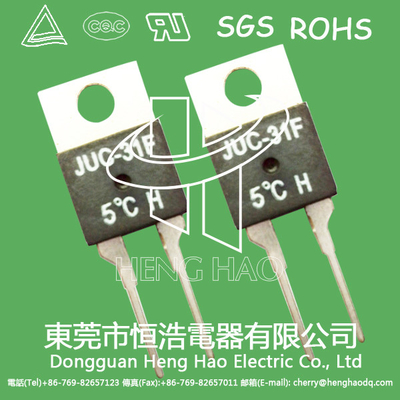

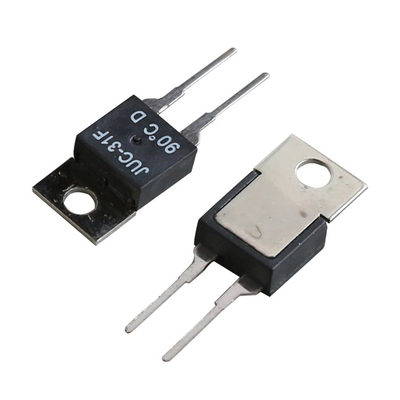

The KSD-01F is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This high-reliability product offers sensitive and accurate temperature control with compact dimensions and lightweight construction for easy installation on PCB circuit boards, heat equipment, and power devices.

• Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
• Contact type: ID (closed) H(open)
• Overheating temperature: 250°C
• Contact resistance: <50mΩ
• Insulation resistance: >100mΩ
• Dielectric withstand voltage: >1500V
• Product life: >10,000 cycles
• Weight: 1.7g
• Action temperature deviations: ±5°C

The 17AMH is an excess-current thermal protector featuring compact design and quick, accurate action. Custom lead configurations are available to meet specific requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: >10,000 cycles at rated load
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C to ±5°C
• Reset temperature: 10-45°C below trip temperature
• Working cycles: >10,000 operations

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series
• XXX: Trip temperature code
• A/B: Terminal orientation
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type
