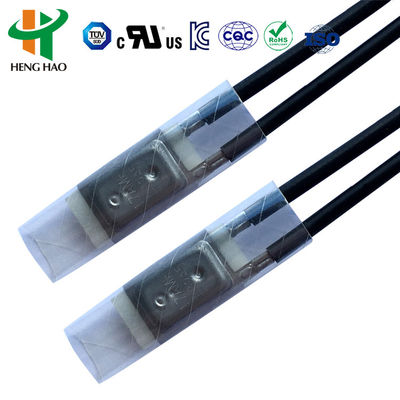

17AM030A5 Temperature Protector 17AM028A5 Bimetallic Thermostat 17AM029A5

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

• 17AMH thermostat’s Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8. Trip off temperature in °C Code

2.9. Product Drawing

3. 17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4. 17AM thermostat’s A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.

Thermostat, thermal protector supplier, thermal protector, Thermostat supplier

Thermostat manufacturer

3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
