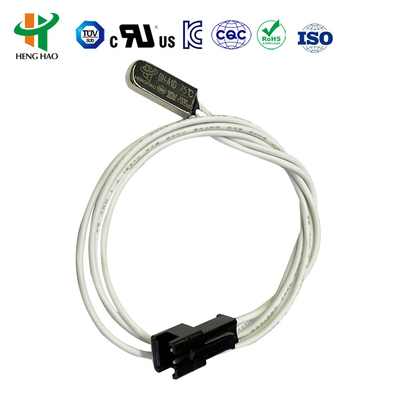

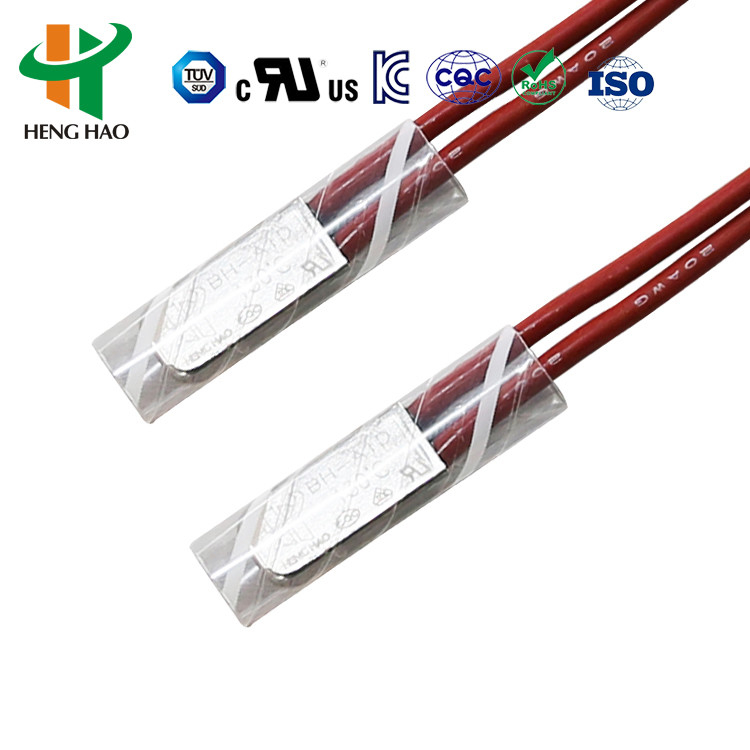

Large Image :  BW-ECM Thermostat BW-ECP Temperature Protector Switch KSD9700 Bimetallic Thermostat

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: BH-TB02B-B8D
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.12
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15
Payment Terms: D/P, T/T
Supply Ability: 10000000PER MONTH
Contact Now

BW-ECM Thermostat BW-ECP Temperature Protector Switch KSD9700 Bimetallic Thermostat

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

BW-ECP Temperature Protector Switch

,

BW-ECM thermostat

,

Temperature Protector Switch KSD9700

BW-ECM Thermostat BW-ECP Temperature Protector Switch KSD9700 Bimetallic Thermostat
Product Overview
BH series thermostat / Miniature thermal protector / Rechargeable battery thermostat
BH Series Thermostat - Principle and Structure
BW & BH series protectors offer protection against over-current and over-temperature conditions. They feature sealed construction, small internal resistance, no noise, and automatic reset functionality. When current passes through the temperature and current-sensitive bimetal, the bimetal's status changes due to over-temperature or over-current conditions, either cutting off or switching on the circuit. BH series protectors are safer than standard protectors as they eliminate temperature effect lag under sudden high-current conditions.
BH series thermostat internal structure and components
BH Series Thermostat - Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.
Life times 10000 times
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm, or according to customer's require
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002
BH Series Thermal Protector - Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm, or according to customer's require
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135

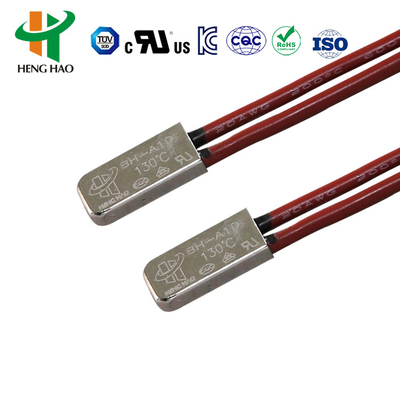

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length is 70mm, or according to customer's require

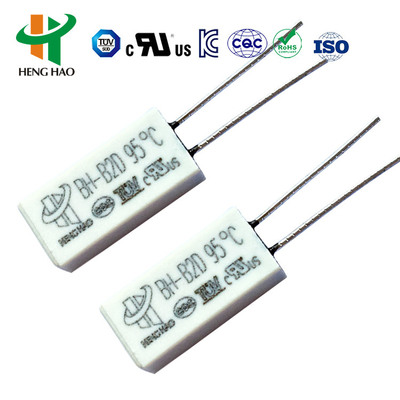

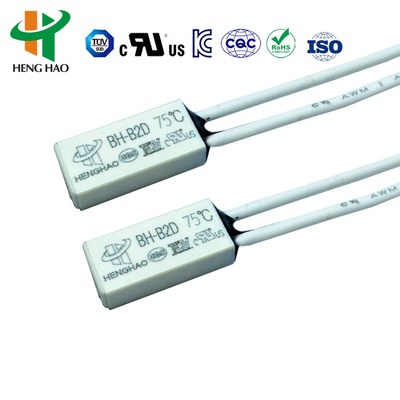

BH-B2D Plastic 15 7.1 3.8
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer's require
BH Series Thermostat - Applications and Instructions
BH series thermal protectors are effective, reliable security protector and alarm devices, widely used in various types of 1.5 horsepower motors, lighting devices, inverter welding machines, switch power supplies, rechargeable battery packs, fluorescent lamp ballasts, portable power tools, electric appliances and other electrical equipment to prevent over-current and over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are suitable for build-in installation of plastic coated motors.
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
BW Series Thermostat / KSD9700 Thermal Protector / BW9700 Temperature Protector
H20, H21 series thermostat - Principle and Structure
H20, H21 series universal and enhanced protectors with large metal casing are composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically close and recover normal operation.
H20, H21 Series Thermal Protector - Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002
H20, H21 Series Temperature Protector - Applications
H20, H21 series is applicable to chargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances and instruments etc.
H20 H21 series thermal protector applications and installation examples
The product has UL, CQC, TUV and RoHS certification approval.
