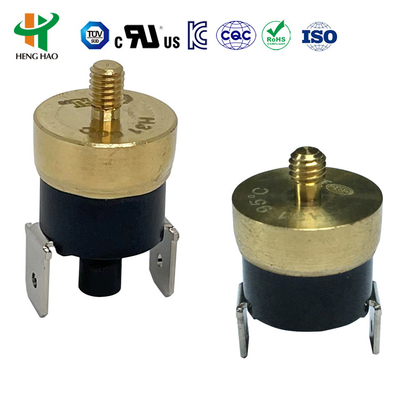

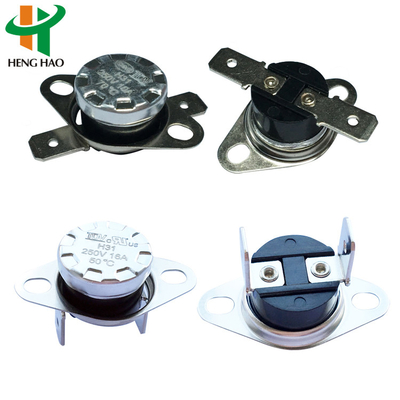

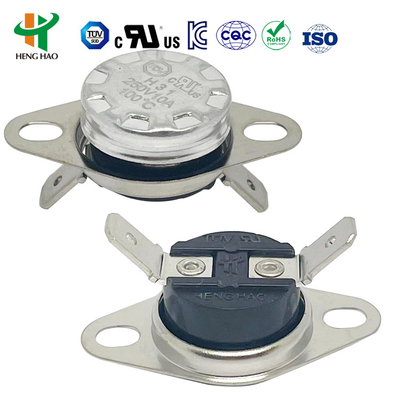

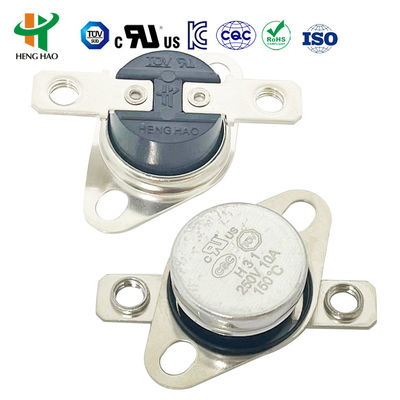

KSD301-G KSD301-R Bimetallic Thermostat KSD301-V Temperature Controller

KSD301 thermostat / bimetal thermal protector / KSD301 temperature protector

The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes occur. This snap action activates the internal contacts, which in turn opens or closes the electrical circuit. Key features include fixed working temperature settings, reliable snap action, minimal flashover, extended service life, and reduced radio interference.

Manual Reset Type: Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. When temperature declines to a fixed point, the contact cannot reset automatically - the circuit must be reconnected by pushing the reset button. This allows restarting the circuit through manual intervention.

• This type can reset when temperature declines 20°C after snap action by pressing the reset button (4-6 N force recommended)
• To ensure normal function, the distance between reset button and close cover should not be less than 20.4mm

Auto Reset Type: Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. When temperature declines to a fixed point, the contact automatically resets and resumes normal operation.

Used as temperature control for household electric appliances including: coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, and more.

The product has UL, CQC, TUV and RoHS certification approval.
