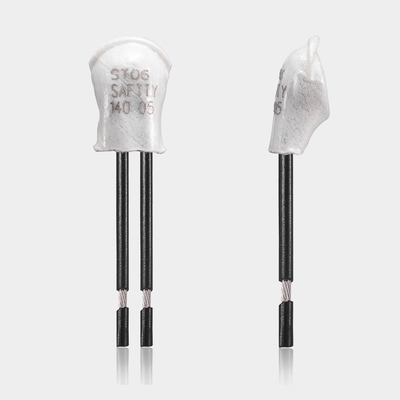

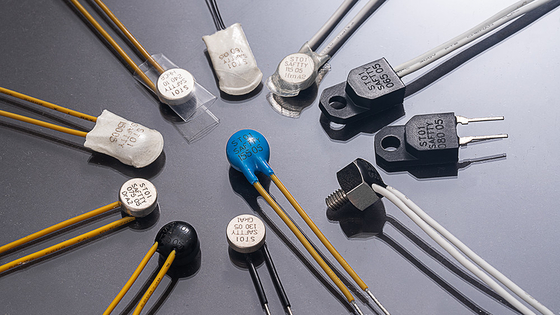

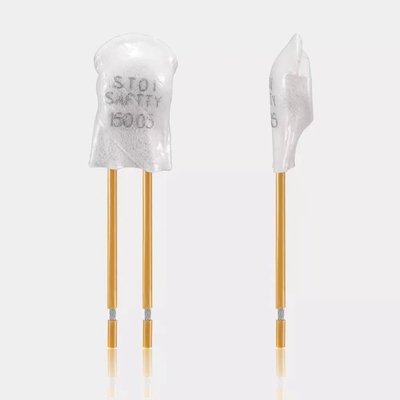

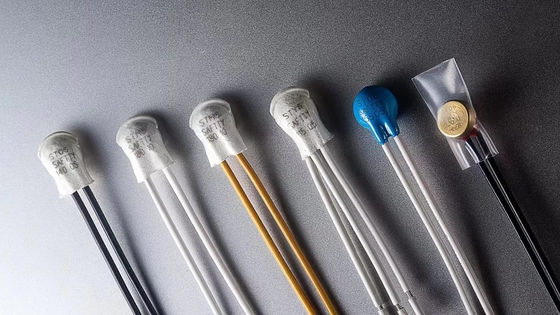

ST11 Thermostat ST01 SO6 Temperature Protector ST05 Temperature Controller

BH series thermostat / Miniature thermal protector / Rechargeable battery thermostat

BW & BH series protectors offer protection against over-current and over-temperature conditions. They feature sealed construction, small internal resistance, no noise operation, and automatic reset functionality. When current passes through the temperature and current-sensitive bimetal, the bimetal's status changes due to over-temperature or over-current conditions, either cutting off or switching on the circuit. BH series provide enhanced safety compared to standard protectors, as there is no temperature effect lag under sudden high current conditions.

BH series thermal protectors are effective, reliable security protector and alarm devices, widely used in various types of 1.5 horsepower motors, lighting devices, inverter welding machines, switch power supplies, rechargeable battery packs, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent damage from over-current and over-heating caused by abnormal work conditions. Enforced types that can withstand pressure of 3.5MPa are suitable for built-in installation of plastic coated motors.

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector

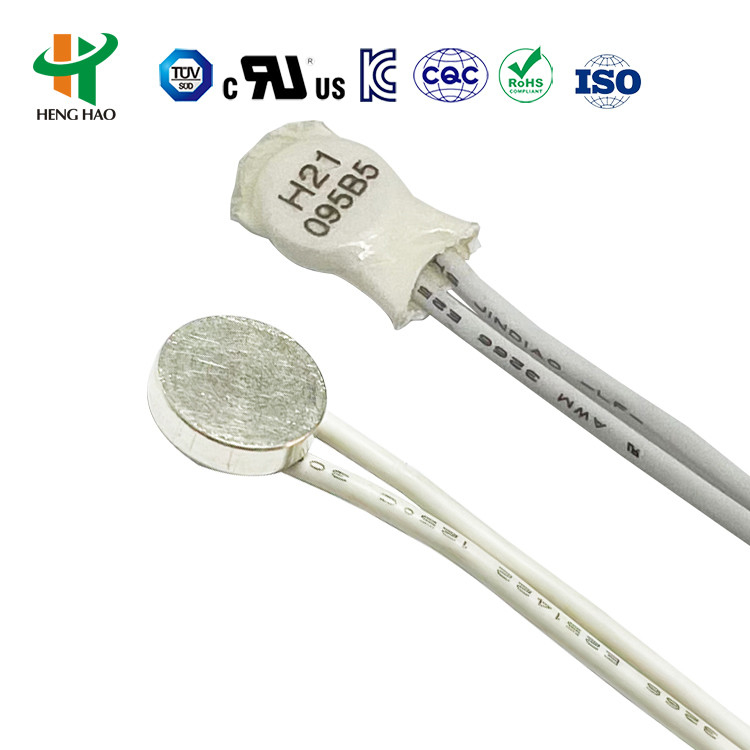

H20 and H21 series universal and enhanced protectors feature large metal casings and are composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact points, conductive brackets, insulation fixation stands, fixed contact strips, and heat resistance cables. In case of abnormal operation, when the environment temperature increases to the set value, the bimetallic parts perform quick action, open the contact points, and disconnect the circuit. When the device cools to safe operating temperature, the contact points automatically close and normal operation resumes.

H20 and H21 series are applicable to rechargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances, and instruments.
