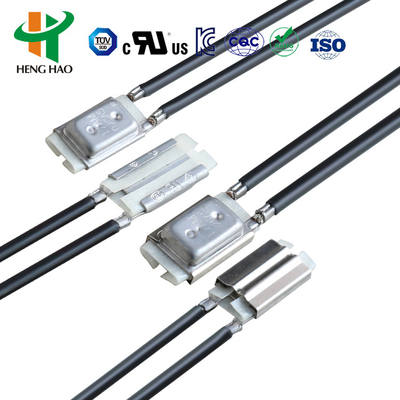

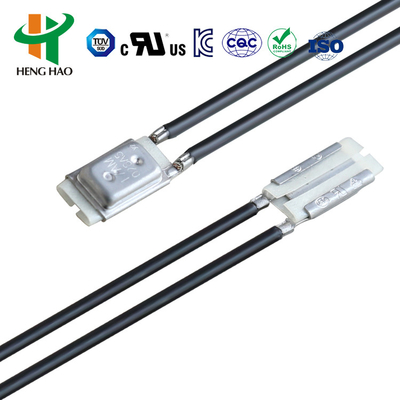

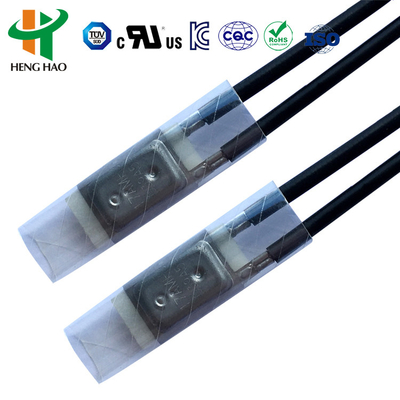

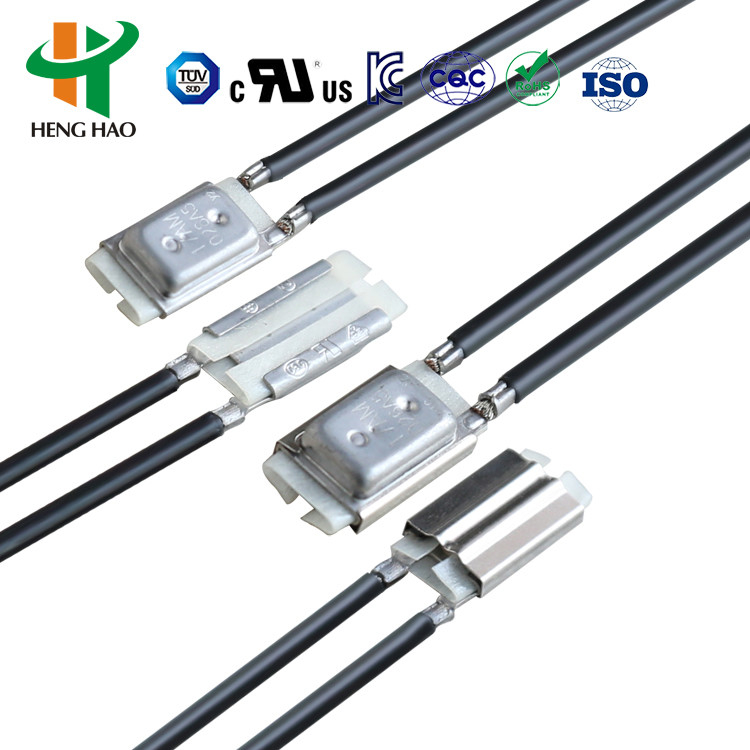

Large Image :  V7AM VAI Bimetallic Thermostat VC2 Thermal Protector V8AM Temperature Controller Auto Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENG HAO
Certification: UL TUV CQC
Model Number: 17AM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD
Packaging Details: 5000pcs per carton
Delivery Time: 10WORKDAYS
Payment Terms: TT FOB SZ, T/T
Supply Ability: 10000000pcs per month
Contact Now

V7AM VAI Bimetallic Thermostat VC2 Thermal Protector V8AM Temperature Controller Auto Reset

Description
Rating And Currents:: AC-125V 15A; AC-250V 10A, DC-16V 20A Life Time: 10000 Times
Use For: 17AM Thermal Protector Is Applicable To All Kinds Of Motor, Commentator For Fluorescent Lamp, Transformer, Laminator, Lamps And Lighting, Transformers, Cover Sealing Machine & Various Of Household Appliances Switch Type: Auto Reset Normally Closed Type
Name: Thermal Overload Protection Switch Operating Temperature Range: 50-180°C
Highlight:

V7AM VAI Bimetallic Thermostat

,

V8AM Bimetallic Thermostat

,

Auto Reset Bimetallic Thermostat

V7AM VAI Bimetallic Thermostat VC2 Thermal Protector V8AM Temperature Controller Auto Reset
17AM Thermal Protector Switch Motor Temperature Cut Off Switch Manufacturer Rated 250V 10A
17AM Thermal Protector Switch
17AMH Thermostat Principle and Structure
17AM is an excess-current thermal protector with compact design, featuring quick and accurate action. We can rivet different types of leads according to customers' requirements.
17AM Thermal Protector Specifications
  • Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A more than 10,000 cycles; AC-125V 5A more than 100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C±3°C±5°C
  • Reset Temperature: 10~45 degrees in off temperature decline
  • Working Times: Over 10,000 times
Code System
17AM XXX A / B 5 A,B,C,D ………..Z
  • (17AMH): The number of product series
  • (XXX): Trip off temperature in °C Code
  • (A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
  • (5): OFF Temperature Tolerance Code
  • (A, B, C, D………..Z): Different type of connecting wire
Trip Off Temperature in °C Code
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
The thermal protection switch is normally located on the A/C compressor housings. It is used to prevent compressor damage (overheat) through internal friction. This switch senses the compressor case temperature and once this case temperature reaches a predetermined figure, the electrical circuit to the compressor is interrupted.
How does a thermal protection switch protect against?
Right Answer is: Thermal protection switch protects against the overload. To create this type of overload, a bra shaft is placed inside a brass tube. In these overload relays (also referred to as "solder pot relays"), the motor current passes through a small heater winding.
Product Drawing
17AM Thermal Protector Product Drawing 1 17AM Thermal Protector Product Drawing 2
17AM Temperature Protector Applications
All kinds of motors, commentator for fluorescent lamp, transformer, laminator, lamps and lighting, transformers, cover sealing machine & various household appliances
Additional Information
17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector
For more information, visit: 17AMH Thermostat
17AM Thermal Protector Additional Diagram
