17AM023A5 Thermal Protector 5AP 8AM Bimetallic Thermostat 17am037a5

17AMH temperature controller switch,17AMH bimetal thermal switch

Product Description

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

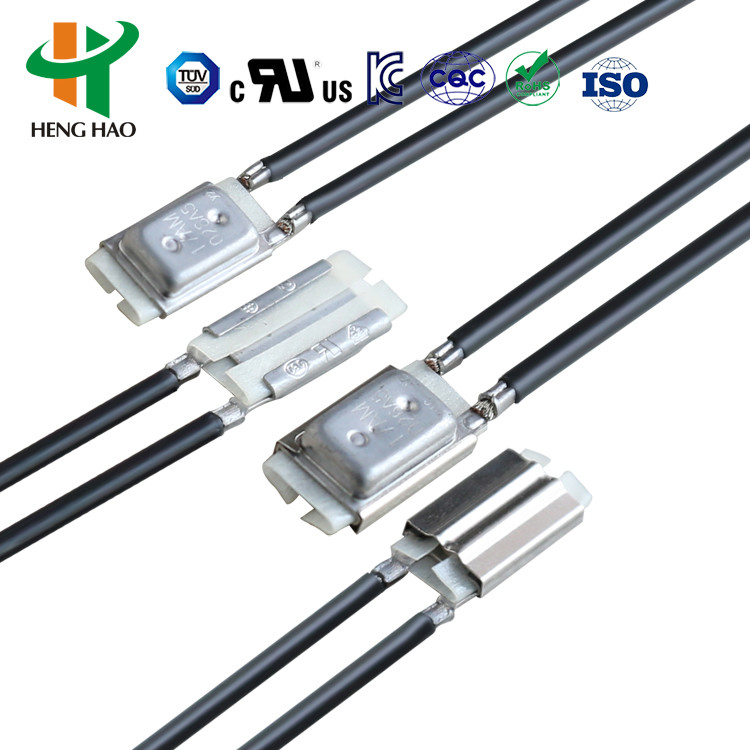

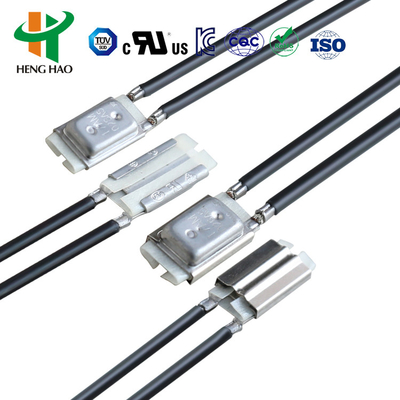

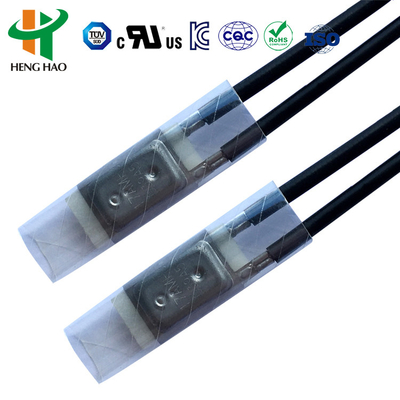

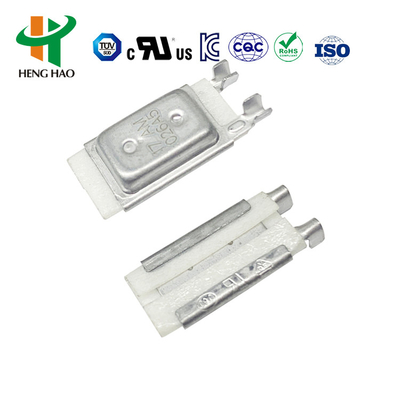

1. 17AMH thermostat's Principle and structure 17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AMH thermal protector's Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste 17AMH XXX A / B 5 A,B,C,D.....Z (17AMH): The number of product series (XXX): Trip off temperature in °C Code (A / B): A: Terminals in the same direction / B: Terminals in the opposite direction (5): OFF Temperature Tolerance Code (A, B, C, D.....Z): Different type of connecting wire

2.8. Trip off temperature in °C Code Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code 55°C 018 90°C 025 125°C 032 160°C 039 60°C 019 95°C 026 130°C 033 165°C 040 65°C 020 100°C 027 135°C 034 170°C 041 70°C 021 105°C 028 140°C 035 175°C 042 75°C 022 110°C 029 145°C 036 180°C 043 80°C 023 115°C 030 150°C 037 85°C 024 120°C 031 155°C 038 2.9. Product Drawing 3. 17AMH temperature protector's Application 17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances 4. 17AMH thermostat's A/°C and A/T Graph: The product UL,CQC,VDE and RoHS certification approval. Thermostat, thermal protector supplier, thermal protector, Thermostat supplier Thermostat manufacturer

Product Specification / Models

250V 10A 50-180degree

Application / Models

17AM thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

• 17AMH thermostat’s Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8. Trip off temperature in °C Code

2.9. Product Drawing

3. 17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4. 17AM thermostat’s A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.
