auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700

auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700
auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700

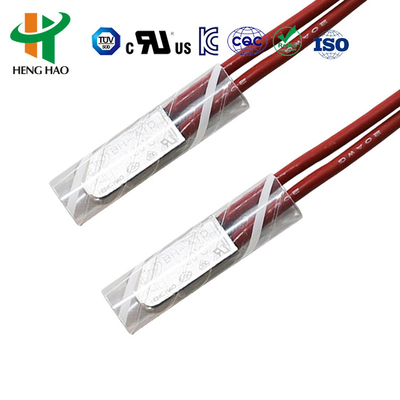

Large Image :  auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700

Product Details:
Place of Origin: China
Brand Name: HENG HAO
Certification: ul tuv
Model Number: BH-B2D
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pieces
Price: $0.25/pieces 5000-9999 pieces
Packaging Details: 100pcs per bag, 10 bags per carton
Supply Ability: 5000000 Piece/Pieces per Month
Contact Now

auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700

Description
Usage: Thermal Breaking Capacity: Low
Safety Standards: IEC Metal: Bimetallic
Voltage And Current: 250V 5A Temperature Range: 30 C~155
Mounting Type: Mounting Life Time: 10000 Times
Size: 15*7.5*3.8mm Port: YANTIAN
Highlight:

Temperature Controller thermal fuse

,

Auto Reset thermal fuse

,

Bimetallic Thermostat thermal fuse

Auto Reset Thermal Fuse KSD9700 Bimetallic Thermostat BW-ABS Temperature Controller 9700
Bimetal Temperature Switch, Temperature Protector BH-B2D 250V 5A 30-150°C
Principle and Structure
BW & BH series thermostats provide protection against over-current and over-temperature. They are sealed firmly, feature small internal resistance, operate silently, and reset automatically. When current flows through the temperature and current-sensitive bimetal, the bimetal's status changes due to over-temperature or over-current conditions, cutting off or switching on the circuit. BH series protectors are safer than normal protectors as there is no temperature effect lag under sudden high current conditions.
Specifications
Electrical Rating:
  • BH Series: DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 5A
  • BH-TB02 Series: DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A
Open Temperature: (30~150)±5°C; 5°C increments
Reset Temperature: 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be customized according to customer requirements.
Dimensions:
Model Length (mm) Width (mm) Height (mm) Lead Wire

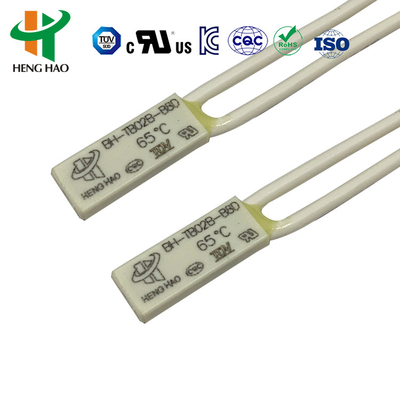

BH-TB02B-B8D 13.5 5.4 2.4 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm or custom

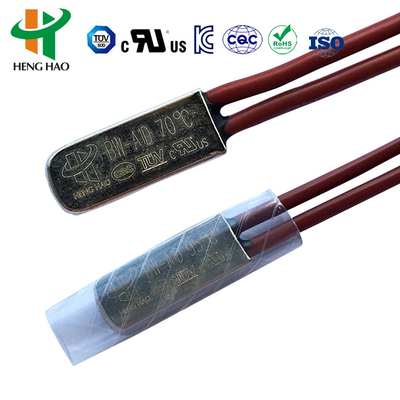

BH-A1D 15 6.6 3.2 -
BH-B2D 15 7.3 3.9 -
BH-B3D 18 8 4 -
Applications and Instructions
BH series thermal protectors are effective, reliable security protectors and alarm devices widely used in various applications including 1.5 horsepower motors, lighting devices, inverter welding machines, switch power supplies, rechargeable battery packs, fluorescent lamp ballasts, portable power tools, electric appliances, and other electrical equipment to prevent over-current and over-heating caused by abnormal working conditions. Enforced types that can withstand pressure of 3.5MPa are suitable for built-in installation in plastic coated motors.
Product Code System
BH-TB02 Series Temperature Codes:
Code Open Temperature Reset Temperature Code Open Temperature Reset Temperature
030 30±3°C ≥20°C 095 95±5°C 70±15°C
035 35±3.5°C ≥25°C 100 100±5°C 70±15°C
040 40±4°C ≥30°C 105 105±5°C 75±15°C
045 45±4.5°C ≥33°C 110 110±5°C 75±15°C
050 50±5°C ≥35°C 115 115±5°C 80±15°C
055 55±5°C 42±6°C 120 120±5°C 85±15°C
060 60±5°C 45±8°C 125 125±5°C 85±15°C
065 65±5°C 48±10°C 130 130±5°C 90±15°C
070 70±5°C 50±12°C 135 135±5°C 95±15°C
075 75±5°C 53±14°C 140 140±5°C 100±15°C
080 80±5°C 55±15°C 145 145±5°C 100±15°C
085 85±5°C 60±15°C 150 150±5°C 105±15°C
090 90±5°C 65±15°C 155 155±5°C 110±15°C

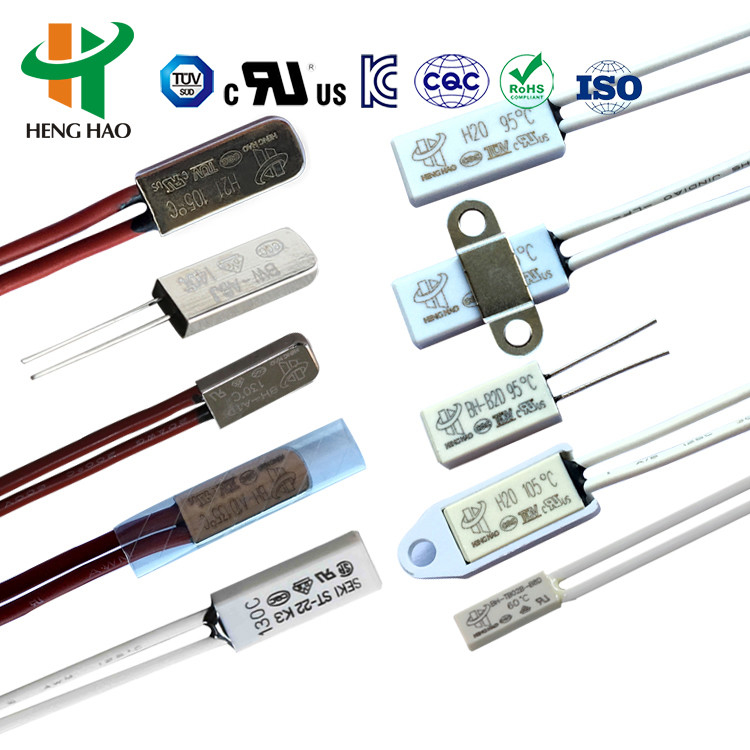

Product Images
auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 0 auto reset thermal fuse KSD9700 bimetallic thermostat bw-abs temperature controller 9700 1
