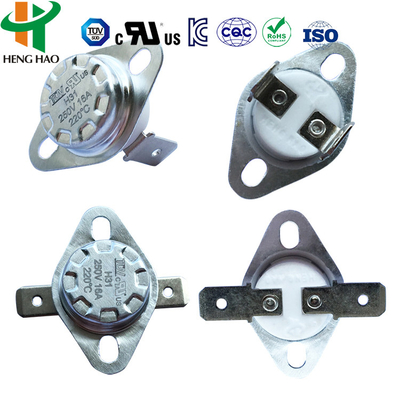

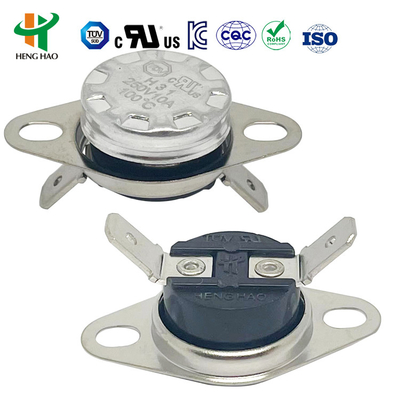

KSD Bimetal Thermostat Thermal Cut Off Switch with 0-250℃ Range Normally Closed or Open Auto or Manual Reset

Large Image : KSD Bimetal Thermostat Thermal Cut Off Switch with 0-250℃ Range Normally Closed or Open Auto or Manual Reset

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	HENGHAO
Certification:	UL CQC TUV ROHS
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	US$0.2-0.3PER,PC
Packaging Details:	1650PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ,T/T
Supply Ability:	1000000 PCS PER MONTH

Contact Now

KSD Bimetal Thermostat Thermal Cut Off Switch with 0-250℃ Range Normally Closed or Open Auto or Manual Reset

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	Temperature thermal cut Switch , Temperature Controller thermal cut Switch

KSD301 Thermal Cut Off Switch KSD302 Temperature Controller KSD303 Temperature Switch

The KSD series thermostat operates on the principle of bimetal discs snapping into action when sensing temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

KSD301 Thermostat Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Movable or immovable
Terminal type	187 series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm
Terminal Angle	Bending angle: 0~90°C optional
Housing	Plastic or ceramic

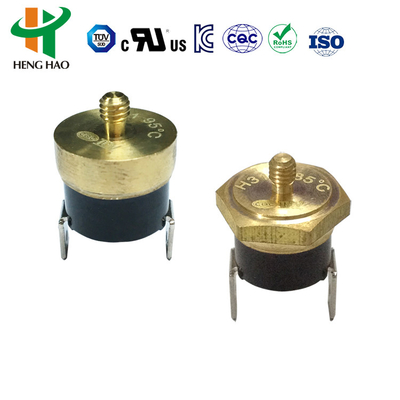

Temperature sensor face	Aluminum cap or copper head

Difference Between Auto Reset and Manual Reset Types

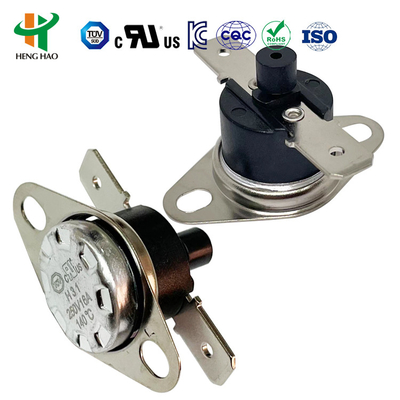

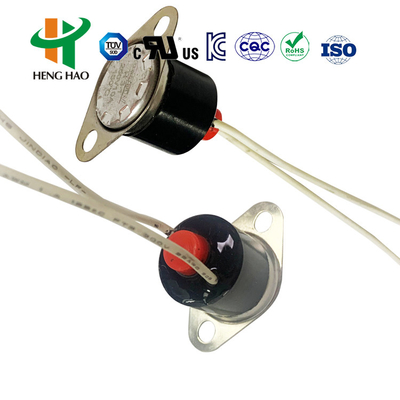

Manual Reset Type: When temperature reaches the action range, the bimetallic strip quickly disconnects. The circuit remains open until manually reset by pressing a button (4-6N force recommended). Requires temperature to decline by 20°C before resetting.

Auto Reset Type: Automatically reconnects when temperature declines to the reset point without manual intervention.

Applications

Widely used for temperature control in household appliances including:

Coffee pots
Automatic toasters
Laminators
Electric water pots
Steam guns
Steam irons
Wind warmers
Microwave ovens
Water dispensers

Standard Temperature Settings (Auto Reset Type)

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃

Custom temperature settings available according to client requirements.

Certifications

UL, CQC, TUV, VDE and RoHS certified.
