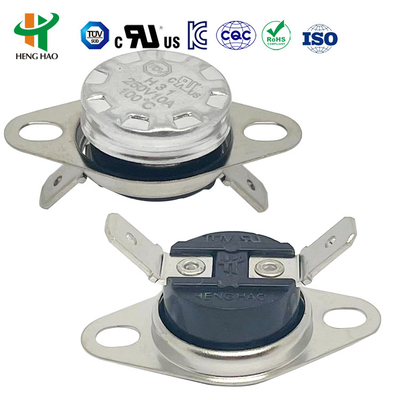

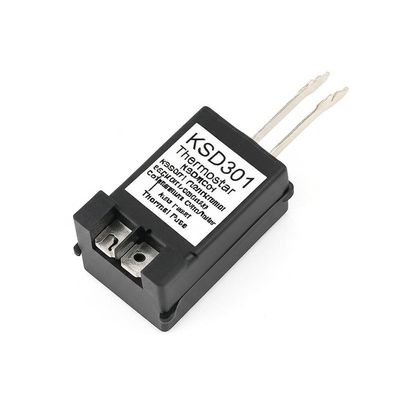

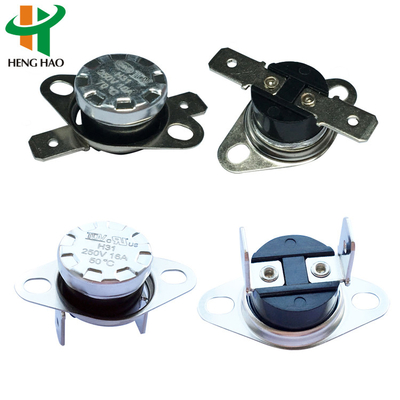

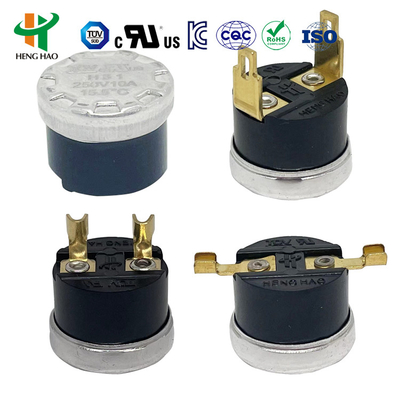

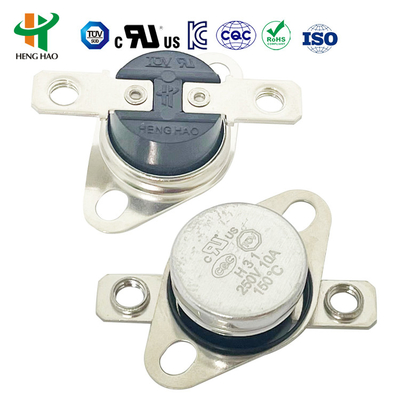

KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function

KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function
KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function
KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function

Large Image :  KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000 PCS PER MONTH
Contact Now

KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

auto reset thermal fuse KSD301 thermostat

,

KSD301 thermostat

,

auto reset KSD301 thermostat

KSD301 Thermostat Temperature Controller
Auto Reset Thermal Fuse for precise temperature control in industrial and household applications.
KSD301 Thermostat Bimetal Thermal Protector with 100000 Cycles -10~300°C Temperature Range and Normally Closed Function 0
Product Overview
The KSD301 thermostat is a bimetal thermal protector designed for reliable temperature control in various electrical appliances.
Working Principle
The KSD series thermostat utilizes a bimetal disc that snaps into action when temperature changes occur. This snap action activates internal contacts to open or close the electrical circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and low radio interference.
Technical Specifications
  • Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
  • Action Temperature Range: -10°C to 300°C
  • Recovery/Action Temperature Difference: 10-25°C (customizable)
  • Temperature Deviation: ±3°C/±5°C/±10°C (customizable)
  • Circuit Resistance: ≤50mΩ (initial value)
  • Insulation Resistance: ≥100mΩ (DC500V Normal State)
  • Dielectric Strength: AC50Hz 1500V/min (no breakdown)
  • Life Cycle: ≥100,000 operations
  • Contact Configuration: Normally closed or open options
  • Mounting Options: Movable or immovable bracket
  • Terminal Types: 187 series (4.8×0.5mm, 4.8×0.8mm) or 250 series (6.3×0.8mm)
  • Terminal Angle: 0-90° bend optional
  • Body Material: Plastic or ceramic options
  • Temperature Sensor Face: Aluminum cap or copper head options
Reset Types
Manual Reset Type
Requires physical reset button press after temperature drops approximately 20°C below trip point. Reset force: 4-6N recommended.
Auto Reset Type
Automatically resets when temperature drops to specified reset point without manual intervention.
Applications
Ideal for temperature control in: coffee pots, toasters, laminators, electric water kettles, steam guns, irons, warmers, microwave ovens, water dispensers, and similar appliances.
Standard Temperature Settings (Auto Reset Type)
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃5℃±5℃95℃±5℃80℃±5℃205℃±5℃175℃±10℃
-15℃±5℃5℃±5℃100℃±5℃80℃±10℃210℃±5℃180℃±10℃
-10℃±5℃5℃±5℃105℃±5℃85℃±10℃215℃±5℃185℃±10℃
0℃±5℃-10℃±5℃110℃±5℃90℃±10℃220℃±5℃190℃±10℃
5℃±5℃-5℃±5℃115℃±5℃95℃±10℃225℃±5℃195℃±10℃
10℃±5℃0℃±5℃120℃±5℃100℃±10℃230℃±5℃200℃±10℃
15℃±5℃5℃±5℃125℃±5℃105℃±10℃235℃±5℃205℃±10℃
20℃±5℃5℃±5℃130℃±5℃110℃±10℃240℃±5℃210℃±10℃
25℃±5℃10℃±5℃135℃±5℃115℃±10℃245℃±5℃215℃±10℃
30℃±5℃15℃±5℃140℃±5℃120℃±10℃250℃±5℃220℃±10℃
Certifications: UL, CQC, VDE, RoHS compliant
