KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

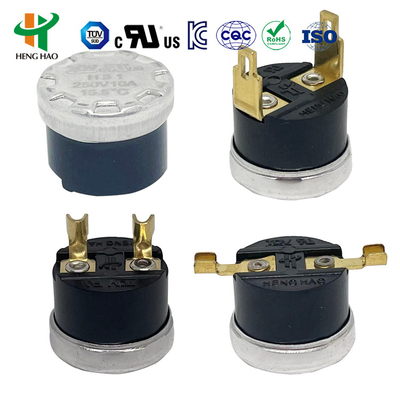

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301-R Thermal Protector

,

KSD302 Thermal Protector

,

KSD301 Thermal Protector

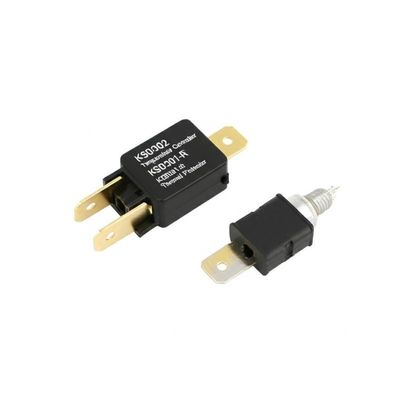

KSD302 Temperature Controller KSD301 KSD301-R Thermal Protector
The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

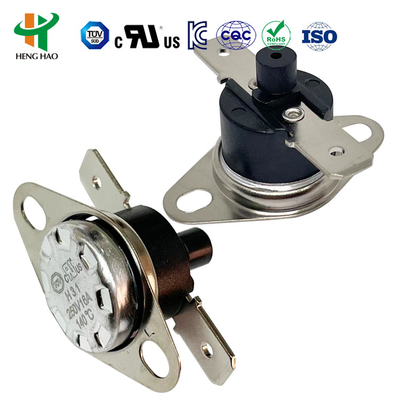

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two kinds: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House Plastic or ceramic
Temperature sensor face Aluminum cap or copper head

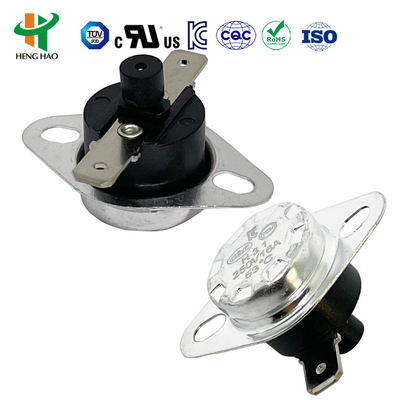

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip temperature sensing. When temperature reaches action range, the disc jumps to disconnect. Requires manual reset button press (4-6N force) after temperature drops 20°C to reconnect circuit. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Uses similar bimetallic strip mechanism but automatically resets when temperature drops to specified point without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature settings available according to client requirements

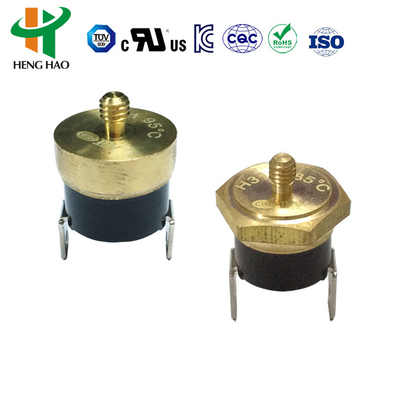

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 2
This product holds UL, CQC, TUV and RoHS certification approvals.
