Auto Reset Thermal Fuse with 10000 Cycles 50-180°C Range for Motor Protection

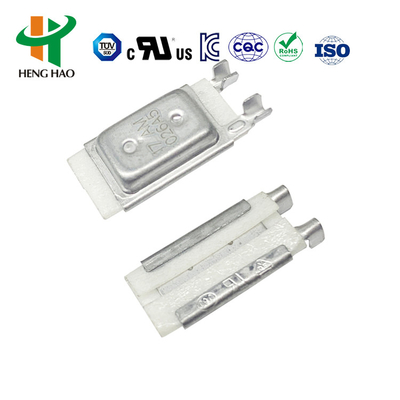

The 17AM is an excess-current thermal protector featuring compact design and quick, accurate action. Different types of leads can be riveted according to customer requirements.

• Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 cycles; AC-125V 5A more than 100,000 cycles
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C±3°C±5°C
• Reset temperature: 10~45 degrees in off temperature decline
• Working times: Over 10,000 times

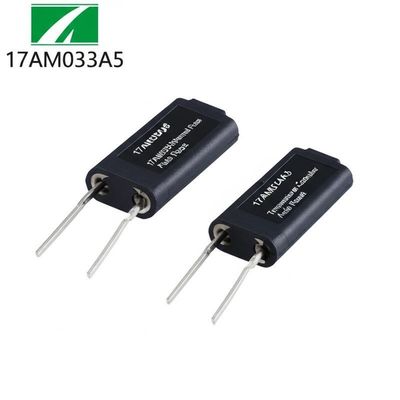

17AM XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip off temperature in °C code
• A/B: A: Terminals in same direction / B: Terminals in opposite direction
• 5: OFF Temperature Tolerance Code

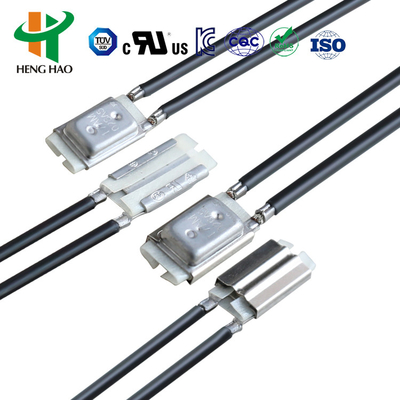

• A,B,C,D...Z: Different types of connecting wire

The thermal protection switch is normally located on A/C compressor housings to prevent compressor damage (overheat) through internal friction. This switch senses compressor case temperature and interrupts the electrical circuit when a predetermined temperature is reached.

Suitable for various motors, fluorescent lamp commutators, transformers, laminators, lamps and lighting, cover sealing machines, and various household appliances.
