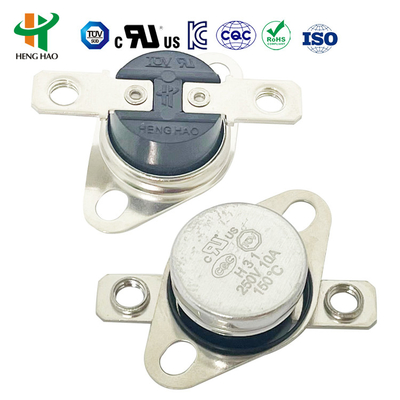

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances
KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances
KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances

Large Image :  KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301 auto reset thermal fuse

,

KSD302 auto reset thermal fuse

KSD302 KSD301 Auto Reset Thermal Fuse KSD301-V Temperature Controller Thermostat

The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close the circuit, featuring fixed working temperatures, reliable operation, minimal flashover, long service life, and reduced radio interference.

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable

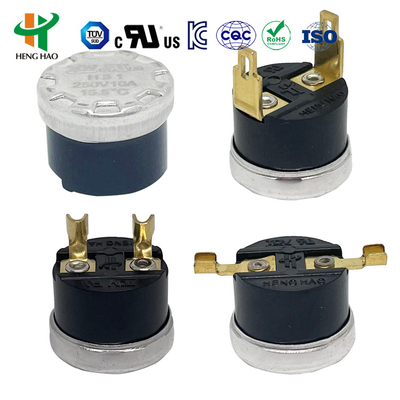

Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types

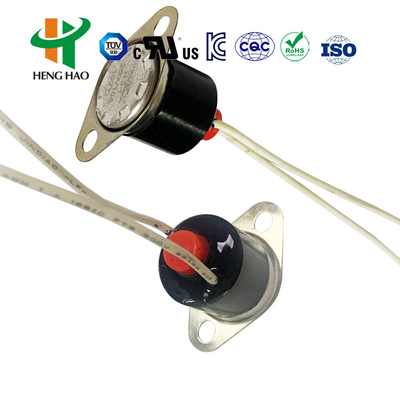

Manual Reset Type

Features bimetallic strip temperature sensing components that disconnect at the action temperature range. Requires manual reset by pressing a button when temperature declines approximately 20°C after snap action (4~6 N force recommended). Ensure minimum 20.4mm clearance between reset button and cover.

Auto Reset Type

Automatically resets and resumes operation when temperature declines to the reset point without manual intervention.

KSD301 Bimetal Thermostat Applications

Ideal for temperature control in household appliances including:

  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃

Custom temperature specifications available according to client requirements.

The product has UL, CQC, TUV and RoHS certification approval.

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with Plastic or Ceramic Housing UL/CQC/TUV/RoHS Certified for Household Electric Appliances 1
