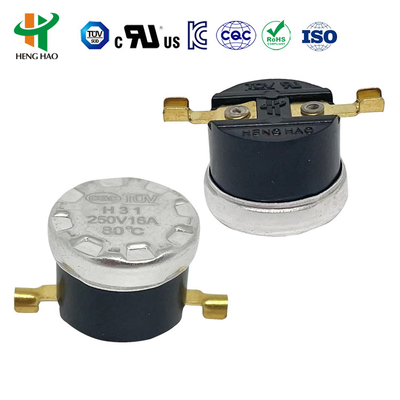

KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 auto reset thermal fuse

,

KSD301 thermal fuse

,

KSD301-R auto reset thermal fuse

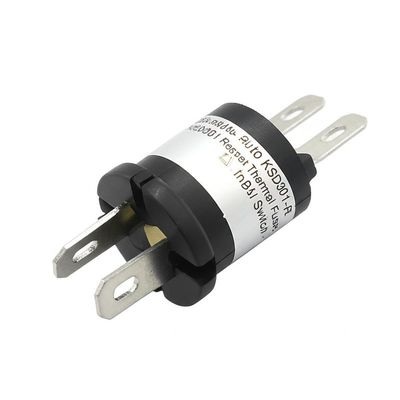

KSD301-R Auto Reset Thermal Fuse KSD301 Thermal Switch
Product Description

The KSD301-R Auto Reset Thermal Fuse is a reliable temperature protection device designed for various electrical applications. Its bimetal disc technology ensures precise temperature control and circuit protection.

Principle and Structure

The KSD series thermostat operates using a bimetal disc that snaps into action when sensing temperature changes. This snap action activates the internal mechanism to open or close the circuit, featuring fixed working temperatures, reliable operation, minimal flashover, long service life, and reduced radio interference.

KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Technical Specifications
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees, or custom
Temperature Deviation ±3/±5/±10 degree or custom
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open

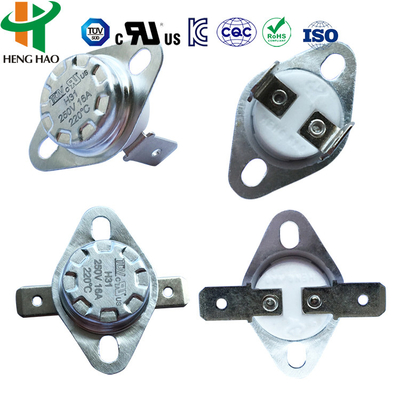

Mounting Options Movable or immovable bracket
Reset Types

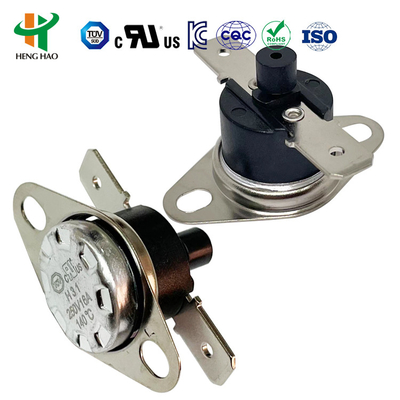

Manual Reset Type: Requires physical reset button activation after temperature drops approximately 20°C from trip point. Reset force: 4-6N recommended.

Auto Reset Type: Automatically resets when temperature returns to specified level without manual intervention.

Applications

Ideal for temperature control in various household and industrial appliances including:

  • Coffee makers
  • Toasters
  • Laminators
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Certifications

This product meets UL, CQC, TUV and RoHS certification standards.

KSD301 Auto Reset Thermal Fuse with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
