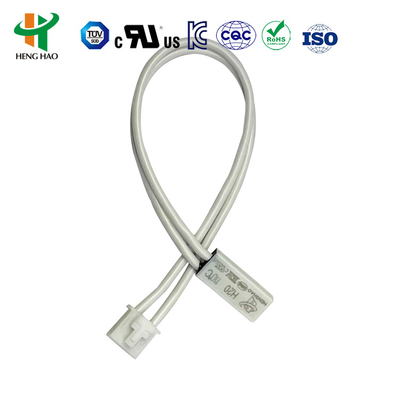

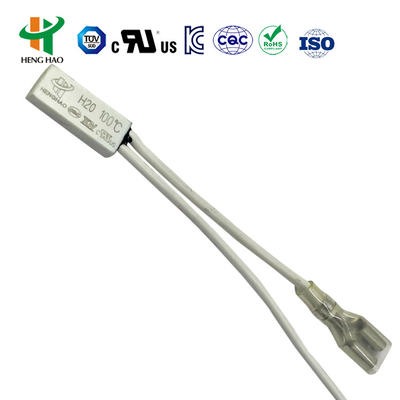

ST-22 Bimetallic Thermostat Temperature Controller ST-22 SEKI Thermostat Auto Reset Thermal Fuse

ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse
ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse
ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse

Large Image :  ST-22 Bimetallic Thermostat Temperature Controller ST-22 SEKI Thermostat Auto Reset Thermal Fuse

Product Details:
Place of Origin: Guangdong, China
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.30/pieces 1000-4999 pieces
Packaging Details: 2000PCS/CARTON
Delivery Time: 9WORKDAYS
Supply Ability: 5000000 Piece/Pieces per Month

ST-22 Bimetallic Thermostat Temperature Controller ST-22 SEKI Thermostat Auto Reset Thermal Fuse

Description
Type: Switch Snap Action Application: Motor, Power Supply
Supplier Type: Original Manufacturer Cross Reference: BW-A1D
Media Available: Datasheet, Photo Brand: Thermal Protector
Mounting Feature: Back Or Front Of Panel Size / Dimension: 18.5*7.5*3.8mm
Switch Function: ON-OFF Current Rating (Amps): 5A-10A
Voltage Rating - AC: 250V Voltage Rating - DC: 24V
Voltage: 24 ~ 240V Electrical Rating: 250v 5A~16A
Action Temperature Range: 40~150 Centigrade Life Cycle: 10000times
Size: 18.5*7.5*3.8mm Contact Type: Normally Closed Type
Switch Type: Temperature Switch Port: Any Port Form SHENZHEN
High Light:

ST-22 Bimetallic Thermostat

,

auto reset thermal fuse

,

ST-22 SEKI Thermostat

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector

  1. 1.     BW series thermostat’s Principle and structureST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse 0

BW serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

  1. 2.     BW series thermal protector’s Specification

2.1.Switch type: normally closed, normally opened.

2.2.Operating Voltage / Current: AC250V / 5A; AC125V / 8A

2.3.Operating Temperature: 40~150 (one step for every 5°C)

2.4.Standard Tolerance: +-3°C/ +-5°C/ +-7°C

2.5.Reset temperature: operating temperature decrease by 15-45°C

2.6.Contact Closure resistance:50mΩ

2.7.Insulation resistance:100mΩ

2.8.Electric strength: AC1500V/1min free from phenomena of break down and flashover.

2.9.Service life: 10000 times

  1. 4.     BW series temperature protector’s Application

BW series is applicable to chargeable battery, ballast, massager, motor,transformer, electric tools, heat electric appliance and instrument etc.



Code

Open temperature

Reset temperature

Code

Open Temperature

Reset Temperature

045

45+-4.5

≥33

105

105+-5

75+-15

050

50+-5

≥35

110

110+-5

75+-15

055

55+-5

42+-6

115

115+-5

80+-15

060

60+-5

45+-8

120

120+-5

85+-15

065

65+-5

48+-10

125

125+-5

85+-15

070

70+-5

50+-12

130

130+-5

90+-15

075

75+-5

53+-14

135

135+-5

95+-15

080

80+-5

55+-15

140

140+-5

100+-15

085

85+-5

60+-15

145

145+-5

100+-15

090

90+-5

65+-15

150

150+-5

105+-15

095

95+-5

70+-15

155

155+-5

110+-15

100

100+-5

70+-15









ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse 1ST-22  Bimetallic Thermostat Temperature Controller ST-22 SEKI  Thermostat Auto Reset Thermal Fuse 2
