17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action

17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action
17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action
17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action

Large Image :  17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: 17AMH
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.35-0.5 PER PC
Packaging Details: 1000 pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

17AM029A5 auto reset thermal fuse

,

8AM auto reset thermal fuse

,

17AM035A5 auto reset thermal fuse

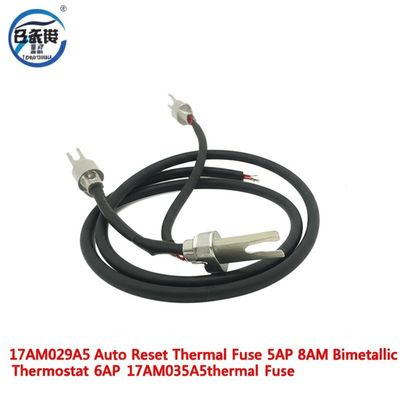

17AM029A5 Auto Reset Thermal Fuse 5AP 8AM Bimetallic Thermostat 6AP 17AM035A5 Thermal Fuse
17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 0
Product Overview

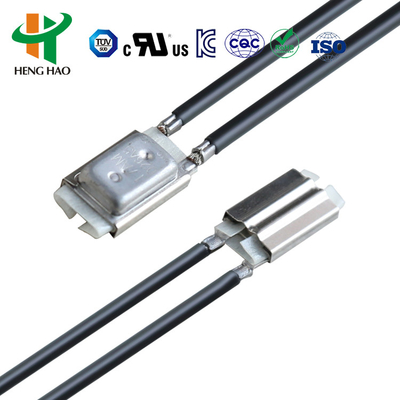

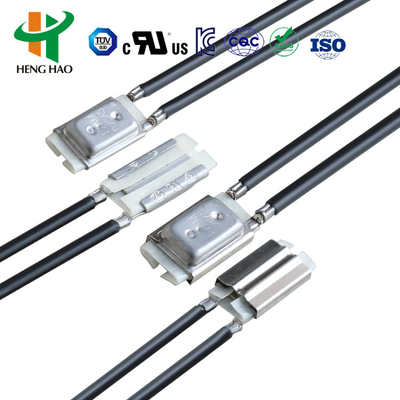

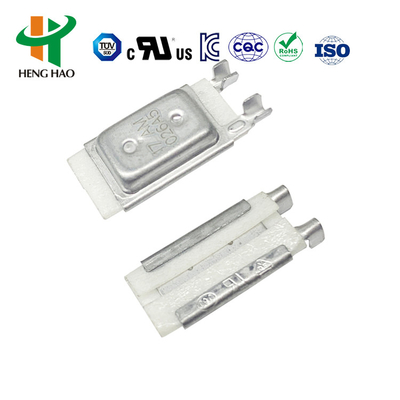

The 17AMH thermal protector is a compact, bimetallic thermostat designed for precise temperature control and protection in various electrical applications. It serves as a direct replacement for KLIXON 17AM thermal protectors.

Key Features
  • Compact design with quick, accurate action
  • Customizable lead configurations available
  • Auto-reset functionality
  • High cycle life (10,000+ operations)
  • Wide operating temperature range (50-180°C)
  • Multiple electrical ratings available
Technical Specifications
Electrical Ratings: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: 10,000+ cycles at rated load
Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, or ±5°C
Reset Temperature: 10-45°C below trip point
Temperature Code System
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
Applications

The 17AMH thermal protector is suitable for:

  • Electric motors and motor-driven equipment
  • Fluorescent lamp commutators
  • Transformers and power supplies
  • Laminators and sealing machines
  • Lighting fixtures and ballasts
  • Various household appliances
Product Diagram
17AM Thermal Protector Bimetallic Thermostat with 0-250℃ Range Compact Design and Quick Accurate Action 1
Certifications

UL, CQC, VDE, and RoHS compliant.
