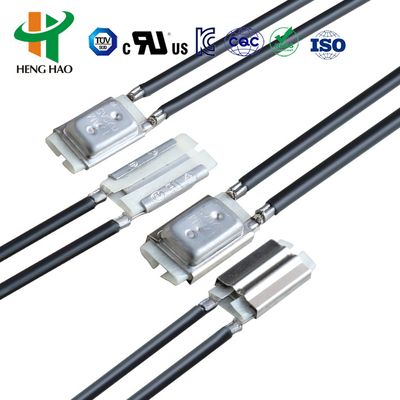

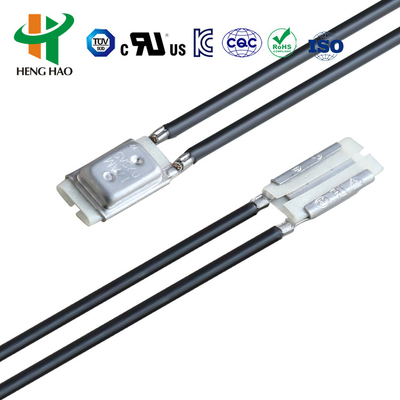

17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications

17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications
17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications
17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications

Large Image :  17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: 17AM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15~0.2/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month
Contact Now

17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Metal
Highlight:

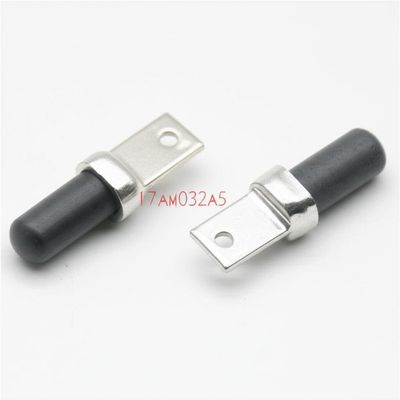

17AM032A5 thermal fuse

,

17AM036A5 auto reset thermal fuse

,

17AM033A5 Thermal Protector

17AM Series Thermal Protectors
The 17AM series includes multiple thermal protection solutions: 17AM032A5 Thermal Fuse, 17AM036A5 Auto Reset Thermal Fuse, and 17AM033A5 Thermal Protector.
Product Overview
The 17AM is an excess-current thermal protector featuring a compact design with quick and accurate action. We can customize lead configurations to meet specific requirements.
17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 0
Technical Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles:
    • AC-125V 15A, AC-250V 10A: >10,000 cycles
    • AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C/±3°C/±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Times: >10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
  • 17AMH: Product series
  • XXX: Trip temperature in °C code
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type
Temperature Code Reference
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
Product Drawings
17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 1 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 2 17AM Thermal Protector with 50-150℃ Range Bimetallic Strip for Motor Applications 3
Applications
The 17AM thermal protector is suitable for various applications including:
  • Motors and transformers
  • Fluorescent lamp ballasts
  • Laminators and sealing machines
  • Lighting equipment
  • Household appliances
Certifications
This product holds UL, CQC, VDE, and RoHS certifications.
Manual Reset Type Operation
The manual reset version uses a bimetallic strip temperature sensing component. When temperature reaches the action range, the contacts open quickly. The circuit remains open until manually reset by pushing the button after temperature declines by at least 20°C.
Note: Apply 4-6N force when resetting. Maintain at least 20.4mm clearance between reset button and enclosure for proper operation.
