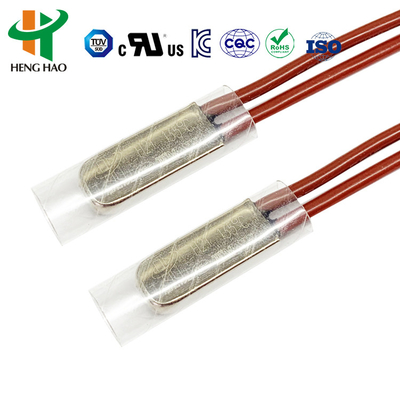

KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection

KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection
KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection
KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection

Large Image :  KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

KSD9700 thermal fuse

,

BW9700 auto reset thermal fuse

,

9700K Thermostat thermal fuse

KSD9700 Thermal Fuse 9700K Thermostat BW9700 Auto Reset Thermal Fuse BW-ABS Bimetallic Thermostat
BW & BH series protectors offer reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The bimetallic components respond to temperature and current changes, altering their state to either cut off or restore the circuit during abnormal conditions. BH series provides enhanced safety with immediate response to sudden current surges.
KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available
Life times 10000 times
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002
BH Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm (customizable)

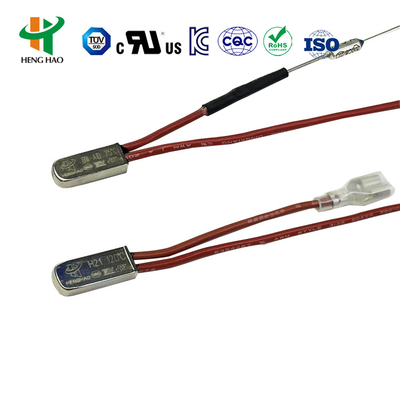

H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135

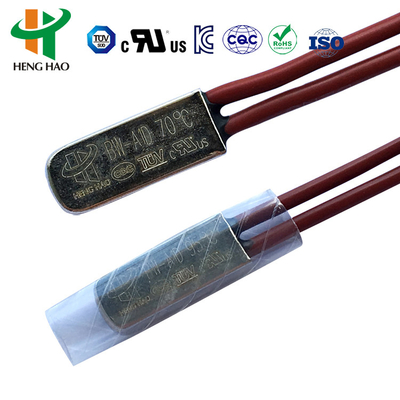

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm (customizable)

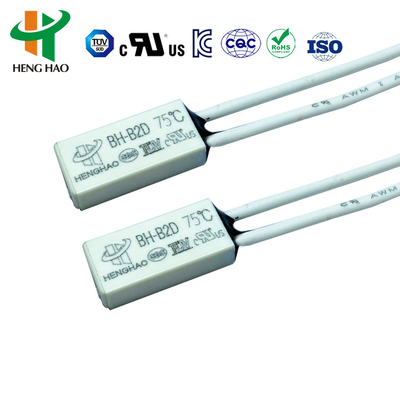

BH-B2D Plastic 15 7.1 3.8

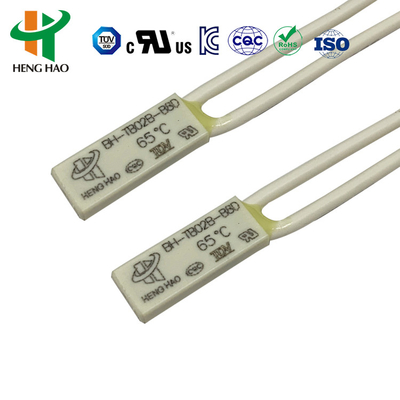

BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm (customizable)
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Electric appliances
H20/H21 Series Thermal Protector Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
KSD9700 Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range and Bakelite Case for Over-Current Protection 1
This product holds UL, CQC, TUV and RoHS certifications.
