KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

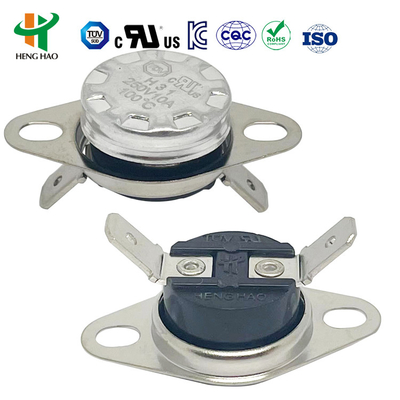

Large Image : KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	HENGHAO
Certification:	UL CQC TUV ROHS
Model Number:	H31

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	US$0.2-0.3 PER PC
Packaging Details:	1650 PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ
Supply Ability:	1000000PCS PER MONTH

Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range for Reliable Temperature Control

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	temperature controller KSD301 , KSD301 Thermostat , H31 Mini Bimetal Thermal Switch

KSD301 Thermal Fuse H31 Mini Bimetal Thermal Switch

The KSD series thermostat operates on the principle of bimetal discs snapping into action with temperature changes. This snap action activates contacts through internal mechanisms, effectively controlling circuit connections. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

KSD301 Thermostat Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
Housing	Plastic or ceramic
Temperature sensor face	Aluminum cap or copper head

KSD301 Auto Reset vs Manual Reset Types

Manual Reset Type

Features a bimetallic strip temperature sensing component. When temperature reaches the action range, the disc snaps open to disconnect. Requires manual reset by pressing a button after temperature decreases by 20°C (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.

Auto Reset Type

Also uses bimetallic strip sensing. Automatically resets and reconnects the circuit when temperature decreases to the reset point without manual intervention.

Temperature Settings

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃

Applications

Household appliances temperature control
Coffee pots
Automatic toasters
Laminators
Electric water pots
Steam guns
Steam irons
Wind warmers
Microwave ovens
Water dispensers

UL, CQC, TUV and RoHS certified.
