KSD301 Temperature Switch Bimetal Thermostat with 250V 16A 0-250℃ Range and 100000 Cycles Life

Large Image : KSD301 Temperature Switch Bimetal Thermostat with 250V 16A 0-250℃ Range and 100000 Cycles Life

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.1
Packaging Details:	2100PCS/CARTON
Delivery Time:	5~8WORKDAYS
Payment Terms:	T/T
Supply Ability:	1000000PER MONTH

Contact Now

KSD301 Temperature Switch Bimetal Thermostat with 250V 16A 0-250℃ Range and 100000 Cycles Life

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	ksd301 thermal fuse 250V 16A , ksd302 thermal fuse 250V 16A , KSD301 Temperature Switch 250V 16A

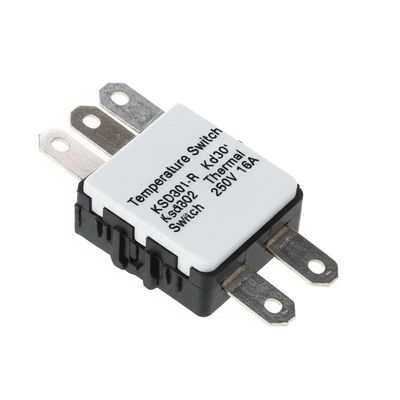

KSD301 Temperature Switch KSD301-R Ksd302 Thermal Switch 250V 16A

The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, long service life, and reduced radio interference.

KSD301 Thermostat Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request
Temperature deviation	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Mounting bracket	Two types: movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
Housing	Plastic or ceramic
Temperature sensor face	Aluminum cap or copper head

KSD301 Auto Reset vs Manual Reset Types

Manual Reset Type: Uses bimetallic strip temperature sensing. When temperature reaches the action range, the disc snaps to disconnect. Requires manual reset button press (4-6N force) after temperature drops 20°C from snap action point. Minimum 20.4mm clearance required between reset button and cover.

Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets when temperature drops to specified point without manual intervention.

KSD301 Bimetal Thermostat Applications

Widely used for temperature control in household appliances including:

Coffee pots
Automatic toasters
Laminators
Electric water pots
Steam guns
Steam irons
Wind warmers
Microwave ovens
Water dispensers

Temperature Settings

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃

Custom temperature settings available according to client requirements

This product has UL, CQC, TUV and RoHS certification approval.

Tag:

ksd301 thermal switch,

bimetal snap disc thermostat,

ksd301 temperature switch

Contact Details

Dongguan Heng Hao Electric Co., Ltd

Contact Person: Cherry Lee

Tel: +86-13431163393

Fax: 86-769-82657011

Other Products

High temperature ceramic thermostat thermal cut off switch KSD301 250V 16A UL TUV CQC ROHS KC

Voltage: 120V AC 250V AC, 12/24VDC, 110-250V, 204-240V/ 100-120VAC, AC 250V/16A; AC 125V/15A

Tolerance: +/-5 C for open action(Optional +/-3 C or less), Min±2°C Standard ±5°C, ±5℃, 1800v/0.5mA/S, ±10℃ or customized

Switch type: normally closed or normally open

life time: 100000 times

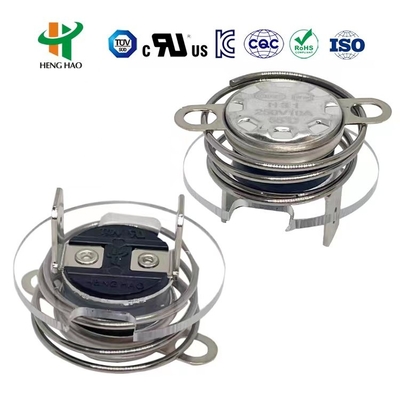

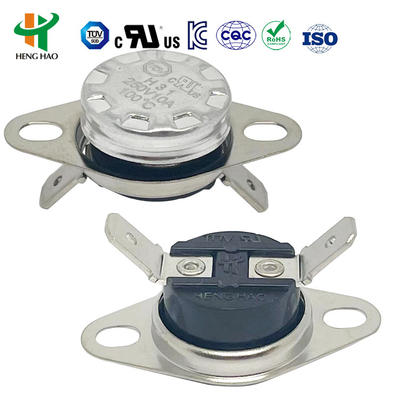

Bimetal Disc Snap Action Thermostats, low temperature limited control switch H31 250V 10 13C

voltage and current: 250v 10a 16a

contact type: normally closed and normally open type

body: ceramic or bakelite

temperature range: 0-250C

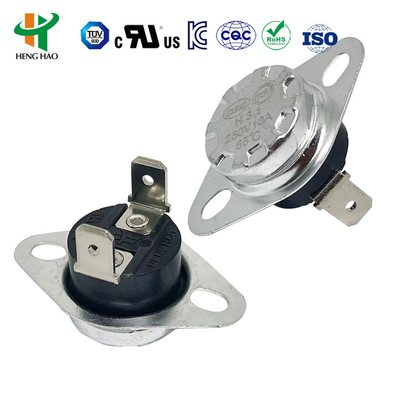

Snap Action Type KSD301 Bimetal Thermostat AC 125V 250V Power Rated

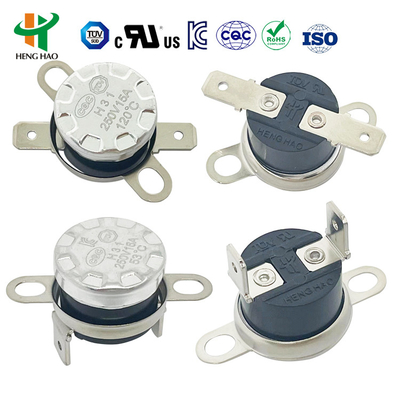

KSD301 Bimetal Temperature thermal Switch , Normally Closed / Open Auto Reset Thermostat
