KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head
KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Large Image :  KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3 PER PC
Packaging Details: 1650 PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301auto reset thermal fuse

,

KSD301 Thermostat

,

KSD301 Mini Bimetal Thermal Switch

KSD301 Auto Reset Thermal Fuse / Thermal Cutoff Switch
The KSD301 series thermostat utilizes a bimetal disc mechanism that snaps into action when temperature changes occur. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, long service life, and reduced radio interference.
KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head 0 KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head 1
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (or custom)
Temperature Deviation ±3/±5/±10°C (or custom)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open

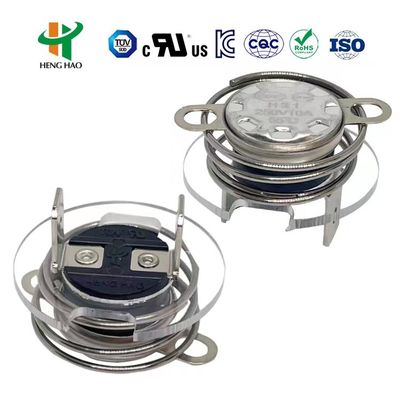

Mounting Bracket Movable or immovable options
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic

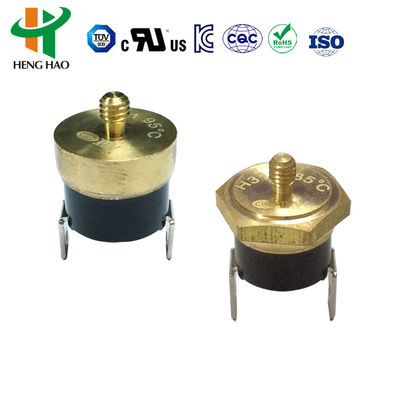

Temperature Sensor Face Aluminum cap or copper head
Reset Types Comparison

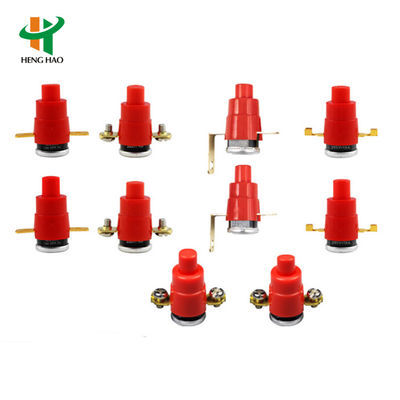

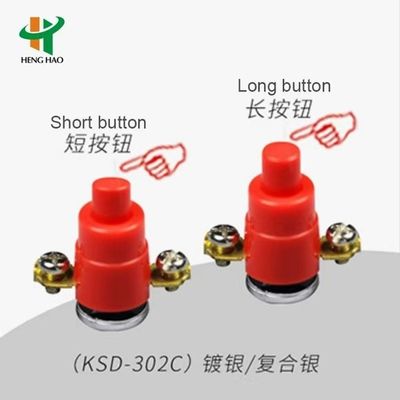

Manual Reset Type
Features a bimetallic strip that disconnects at set temperature. Requires manual reset button press (4-6N force) after temperature drops 20°C from trip point. Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type
Uses bimetallic strip that automatically reconnects when temperature drops to reset point, without manual intervention.
KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head 2
Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water kettles, steam guns, irons, warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
Custom temperature settings available upon request
Certifications: UL, CQC, TUV and RoHS compliant KSD301 Bimetal Thermostat Auto Reset Thermal Fuse with 100000 Cycles Plastic or Ceramic Housing and Aluminum Cap or Copper Head 3
