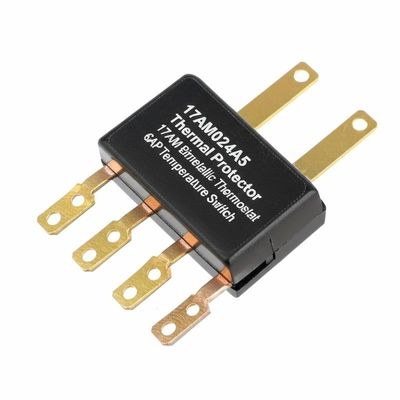

17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts

17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts
17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts
17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts

Large Image :  17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: 17AMH
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.35-0.5 PER PC
Packaging Details: 1000 pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

6AP Temperature Switch Thermal Protector

,

17AM024A5 Thermal Protector

,

17AM Bimetallic Thermostat

17AM024A5 Thermal Protector 17AM Bimetallic Thermostat 6AP Temperature Switch
17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 0
Product Overview

The 17AMH thermal protector is a bimetallic thermostat with compact design, quick and accurate action. It serves as a direct replacement for KLIXON 17AM thermal protectors.

Key Features
  • Compact design with quick, accurate action
  • Customizable lead configurations available
  • Wide operating temperature range: 50-180°C
  • High durability with over 10,000 working cycles
  • Multiple temperature tolerance options (±2°C, ±3°C, ±5°C)
  • UL, CQC, VDE and RoHS certified
Technical Specifications
Parameter Specification
Electrical Rating AC-125V 15A; AC-250V 10A; DC-16V 20A
Contact Life Cycles AC-125V 15A/AC-250V 10A: >10,000 cycles
AC-125V 5A: >100,000 cycles
Operating Temperature 50-180°C
Temperature Tolerance ±2°C, ±3°C, ±5°C
Reset Temperature 10-45°C below trip temperature
Temperature Code System
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 1 17AM024A5 Thermal Protector Bimetallic Thermostat with 250V 16A Rating 0-250℃ Range and Normally Closed/Open Contacts 2
Applications

The 17AM thermal protector is suitable for various applications including:

  • Electric motors
  • Fluorescent lamp commutators
  • Transformers
  • Laminators
  • Lighting systems
  • Cover sealing machines
  • Household appliances
Certifications: UL, CQC, VDE and RoHS approved
