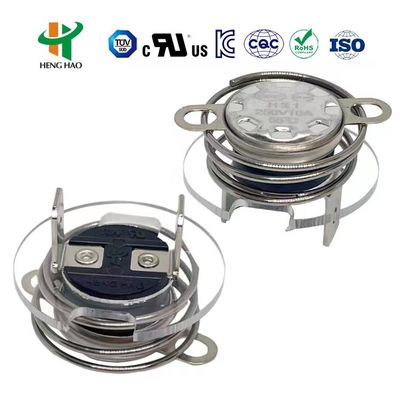

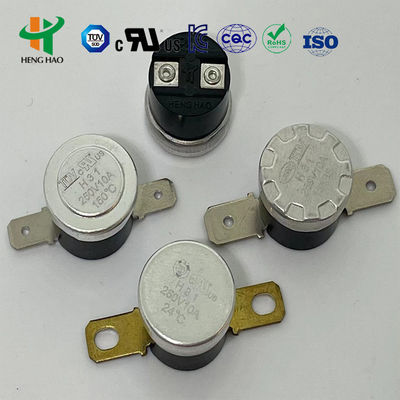

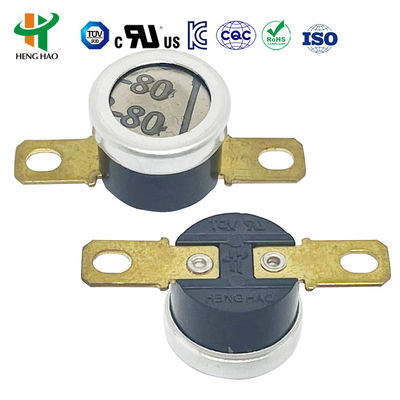

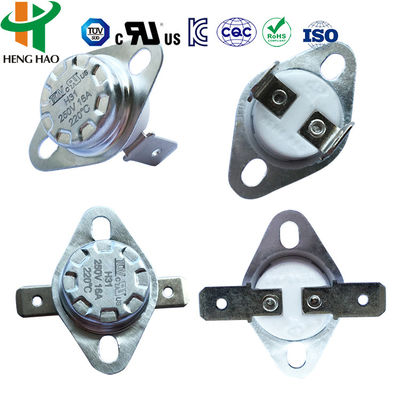

Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles

Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles
Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles
Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles

Large Image :  Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

Auto Reset Thermal Fuse KSD301

,

KSD301-V Temperature Controller

,

KSD301-R temperature controller

Auto Reset Thermal Fuse KSD301 Temperature Controller
The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, long service life, and low radio interference.
Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Terminal Angle 0~90°C optional
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Auto Reset vs Manual Reset Types
  • Manual Reset Type: Requires button press to reconnect circuit after temperature drops ~20°C from trip point (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.
  • Auto Reset Type: Automatically reconnects circuit when temperature drops to reset point without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, irons, warmers, microwave ovens, and water dispensers.
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature specifications available upon request
Certifications: UL, CQC, TUV and RoHS compliant
Auto Reset Thermal Fuse KSD301 Bimetal Thermostat with 250V 16A 0-250℃ Temperature Range and 100000 Cycles 1
