KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse

KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse
KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse
KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse

Large Image :  KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year
Contact Now

KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

KSD-01F bimetallic thermostat

,

JUC-31F thermal fuse

,

JUC-31F bimetallic thermostat

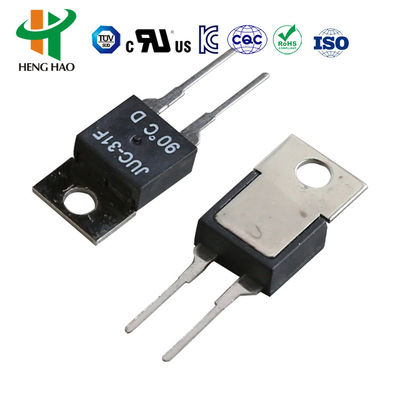

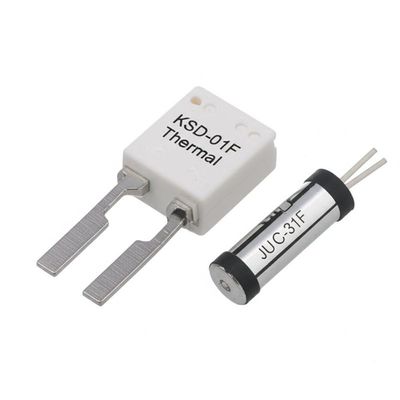

KSD-01F Temperature Controller JUC-31F Thermal Fuse
A bimetallic thermostat with high reliability, sensitive and accurate temperature control, compact size, and easy installation. Ideal for PCB circuit boards, heat equipment, and power devices.
KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse 0

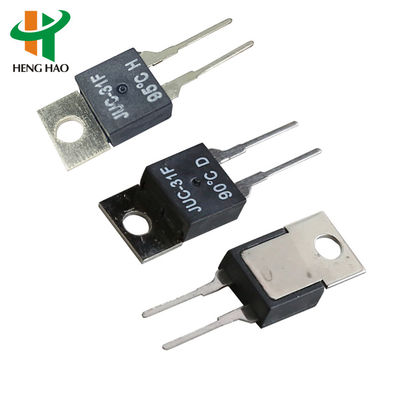

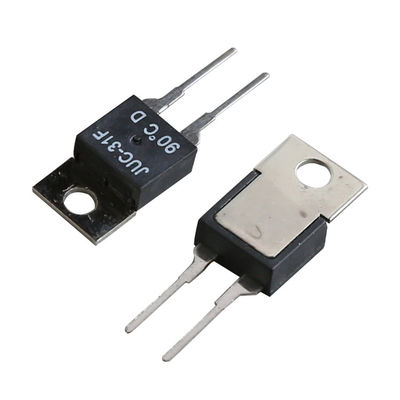

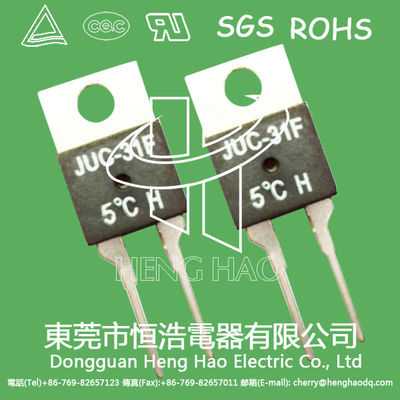

JUC-31F Thermostat Specifications
  • Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
  • Contact type: ID (closed) H (open)
  • Overheating temperature: 250°C
  • Contact resistance: < 50mΩ
  • Insulation resistance: > 100 mΩ
  • Dielectric withstand voltage: > 1500V
  • Product life: > 10,000 cycles
  • Weight: 1.7 g
  • Action temperature deviations: ±5°C
Operating temperature (°C) Recovery temperature (°C) Error Testing way
0~99 5~35 ±3°C 1°C/min
100~130 7~40 ±5°C 1°C/min
Applications
The JUC-31F thermostat is suitable for:
  • Electric equipment and products
  • Household appliances
  • Temperature control and protection
  • Circuit board thermal overload protection
  • Communication and switching power supplies
  • UPS and medical power supplies
  • Audio amplifier equipment
  • Rechargeable devices and rectifiers
  • Welding equipment and aerospace instrumentation
  • Automation and military equipment
KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse 1 KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse 2 KSD-01F Temperature Controller with 0~150°C Range Normally Closed or Open Auto Reset Thermal Fuse 3
Certifications: UL, CQC, VDE, and RoHS compliant.
17AMH Thermal Protector / Thermostat
Compact excess-current thermal protector with quick and accurate action. Customizable lead configurations available.
Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact life cycles: >10,000 cycles at AC-125V 15A/AC-250V 10A; >100,000 cycles at AC-125V 5A
  • Operating temperature range: 50-180°C
  • Temperature tolerance: ±2°C/±3°C/±5°C
  • Reset temperature: 10-45°C below trip temperature
  • Working times: >10,000 cycles
Product Code System
17AMH XXX A/B 5 A,B,C,D...Z
  • 17AMH: Product series
  • XXX: Trip off temperature in °C
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type

Tag:

bimetal thermostat switch,

temperature protection switch,

bimetal thermal fuse
