Auto Reset Thermal Fuse Thermostat with PCB Circuit Board Installation for Electric Equipment and Medical Power Supply Protection

Large Image : Auto Reset Thermal Fuse Thermostat with PCB Circuit Board Installation for Electric Equipment and Medical Power Supply Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL TUV CQC
Model Number:	JUC-31F

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.3~0.31
Packaging Details:	2000PCS /CARTON
Delivery Time:	10~15WORKDAYS
Payment Terms:	T/T
Supply Ability:	10000000PCS PER MONTH

Contact Now

Auto Reset Thermal Fuse Thermostat with PCB Circuit Board Installation for Electric Equipment and Medical Power Supply Protection

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃	Case:	Bakelite
Highlight:	JUC-31F Auto Reset Thermal Fuse Thermostat , KSD-01F Auto Reset Thermal Fuse Thermostat , KSD-01 F Auto Reset Thermal Fuse Thermostat

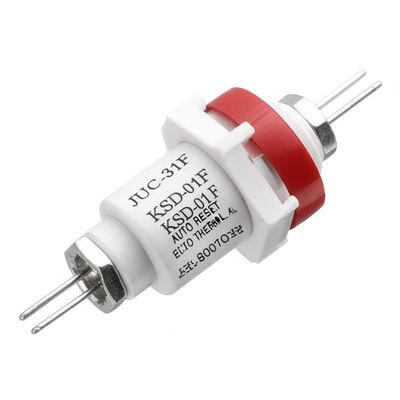

JUC-31F KSD-01F JUC-31 F KSD-01 F Auto Reset Thermal Fuse Thermostat

Product Overview

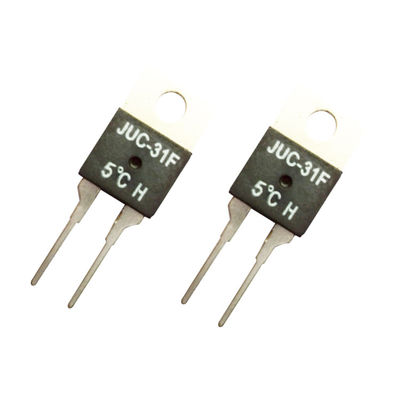

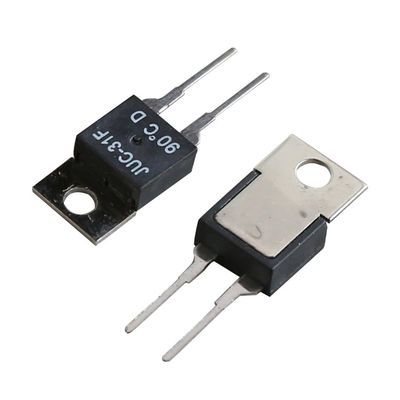

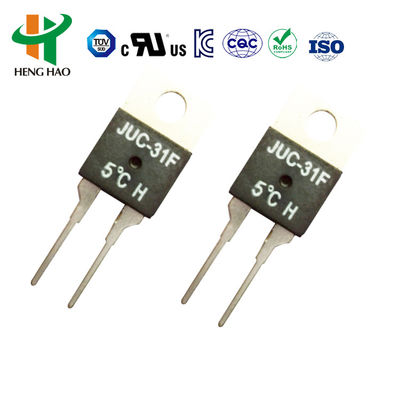

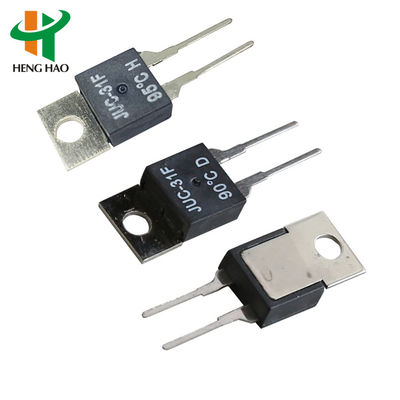

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This highly reliable component offers sensitive and accurate temperature control in a compact, lightweight design that's easy to install on PCB circuit boards, heat equipment, and power devices.

JUC-31F Thermostat Principle and Structure

International TO220/Y220 standard package
High reliability and accuracy
Compact size and lightweight (1.7g)
Easy PCB and equipment installation

Technical Specifications

Parameter

Specification

Contact Load

AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A

Contact Type

ID (closed) H(open)

Temperature Range

Operating Temp (°C)	Recovery Temp (°C)	Error	Testing Method
0-99	5-35	±3°C	1°C/min
100-130	7-40	±5°C	1°C/min

Overheating Temperature

250°C

Contact Resistance

<50mΩ

Insulation Resistance

>100mΩ

Dielectric Withstand Voltage

>1500V

Product Life

>10,000 cycles

Action Temperature Deviation

±5°C

Reset Types

Manual Reset: Temperature sensing components consist of bimetallic strip. When temperature reaches action range, it disconnects quickly. Requires manual reset button press (4-6N force) after temperature declines 20°C from snap action point.

Auto Reset: Automatically resets when temperature declines to fixed point after disconnection.

Applications

The JUC-31F thermostat is ideal for:

Electric equipment and household appliances
Thermal overload protection in circuit boards
Power supplies (communication, switching, UPS, medical)
Audio amplifier equipment and rechargeable devices
Rectifiers, inverters, and welding equipment
Aerospace instrumentation and electronic equipment
Automation and military applications

Certifications: UL, CQC, VDE, and RoHS compliant
