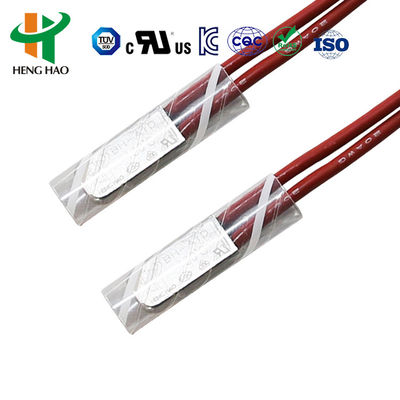

KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat

KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat
KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat
KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat

Large Image :  KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat

Product Details:
Place of Origin: china
Brand Name: HENGHAO
Certification: ul tuv cqc kc
Model Number: ksd9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 100000000PCS PER MONTH
Contact Now

KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

KW9700 Thermal Fuse

,

HCET-B Temperature Controller

,

HCET-A Thermostat

KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat
BH-B2D BH-A1D.pdf

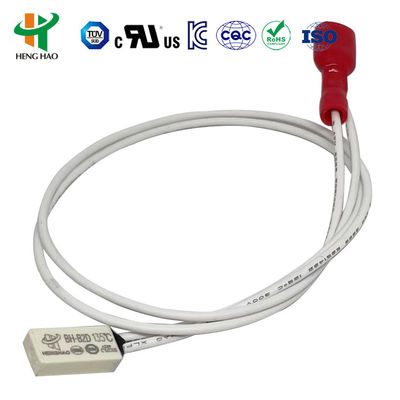

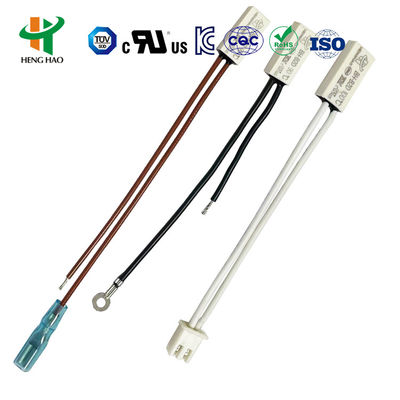

BW & BH series thermal protectors provide reliable protection against over-current and over-temperature conditions. These devices are firmly sealed, feature small internal resistance, operate silently, and reset automatically. When current flows through the temperature-sensitive bimetal component, abnormal conditions cause the bimetal to change state, either cutting off or restoring the circuit. BH series offer enhanced safety compared to standard protectors, with no temperature effect lag during sudden high-current conditions.
KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat 0
BH Series Thermostat Specifications
Parameter Specification
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open Temperature (30~150)±5°C; 5°C steps
Reset Temperature 2/3 of action temperature ±15°C (customizable per customer requirements)
Life Cycles 10,000 operations
Dimensions L15mm × W7.1mm × H3.8mm
Lead Wire #22 3266, end half tripping, 70mm length (customizable)
UL File No E487478
CQC Certificate No CQC16002142880
TUV Certificate No B160592241002
BH Series Thermal Protector Dimensions
Model Case Length (mm) Width (mm) Height (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, 70mm length (customizable)
H21 Metal 18.5 7.3 3.8 - -
H21 Metal 20 8 4 AC250V 20A #16 3135

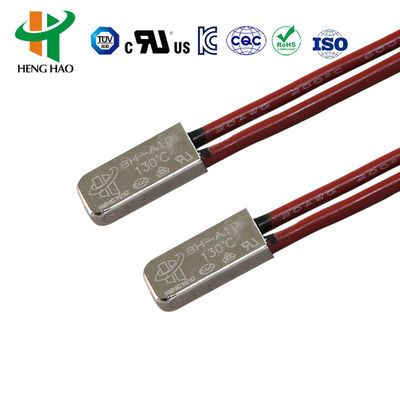

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, 70mm length (customizable)

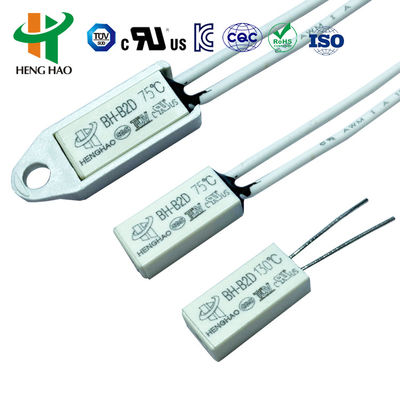

BH-B2D Plastic 15 7.1 3.8 - -
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, 70mm length (customizable)
BH Series Thermostat Applications and Instructions
BH series thermal protectors are effective, reliable security protection and alarm devices widely used in:
These protectors prevent damage from over-current and over-heating caused by abnormal operating conditions. Enforced types capable of withstanding 3.5MPa pressure are suitable for built-in installation in plastic-coated motors.
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
BW Series Thermostat / KSD9700 Thermal Protector / BW9700 Temperature Protector
H20, H21 Series Thermostat Principle and Structure
H20 and H21 series universal and enhanced protectors feature large metal casings and consist of thermal conductive metal casing, bimetallic components welded with silver alloy contact points, conductive brackets, insulation fixation stands, fixed contact strips, and heat resistance cables. During abnormal operation, when environmental temperature reaches the set value, the bimetallic components perform quick action, opening the contact points and disconnecting the circuit. When the device cools to safe operating temperature, the contact points automatically close and restore normal operation.
H20, H21 Series Thermal Protector Specifications
Parameter Specification
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open Temperature (30~150)±5°C; 5°C steps
Reset Temperature 2/3 of action temperature ±15°C (customizable per customer requirements)
Life Cycles 10,000 operations
Contact Closure Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Electric Strength AC1500V/1min free from breakdown and flashover phenomena
UL File No E487478
CQC Certificate No CQC16002142880
TUV Certificate No B160592241002
H20, H21 Series Thermal Protector Applications
H20 and H21 series are applicable to:
  • Rechargeable batteries
  • Ballasts
  • Massagers
  • Micro motors
  • Transformers
  • Electric tools
  • Heating electrical appliances
  • Instruments
Product certifications: UL, CQC, TUV and RoHS approval.
KW9700 HCET-B HCET-A HC25 HCET-A5 Thermal Fuse Temperature Controller Thermostat 1
