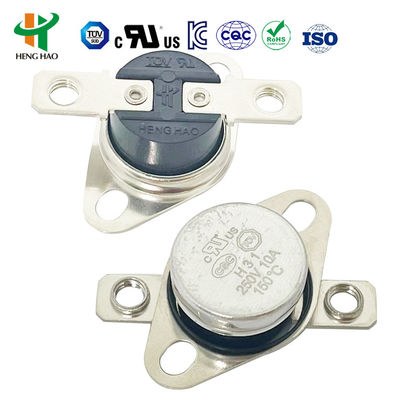

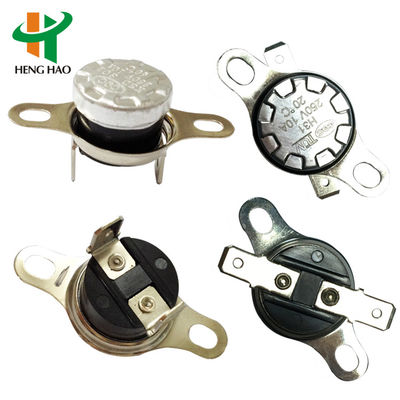

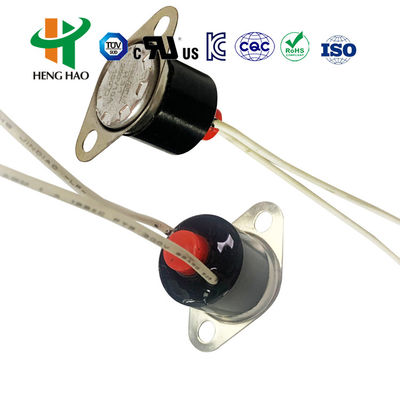

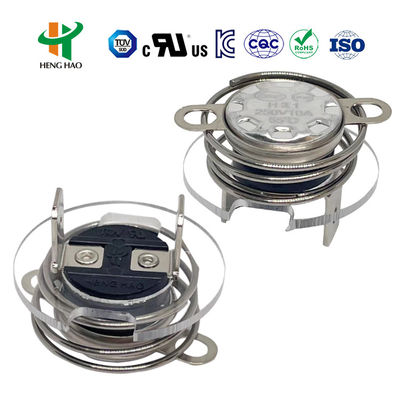

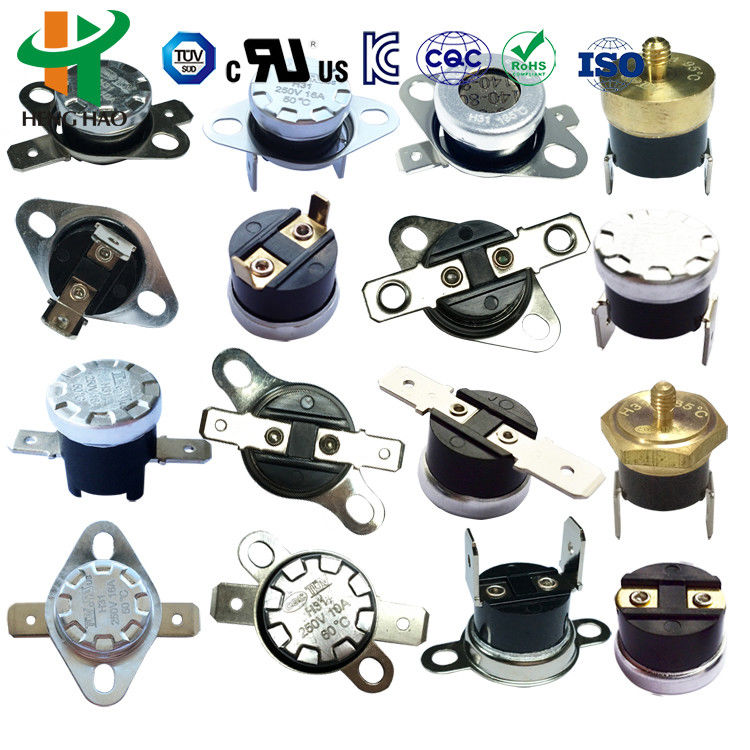

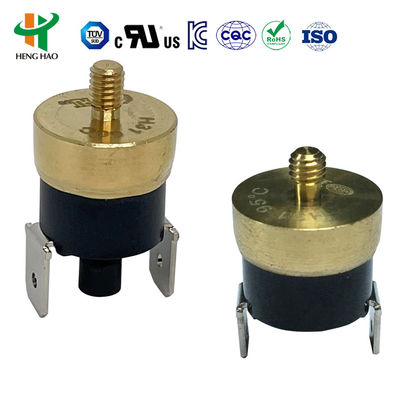

KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch

KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch
KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch
KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch

Large Image :  KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENHGAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.18
Packaging Details: 2000PCS?CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T, D/P
Supply Ability: 1000000PER MONTH

KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

250V 16A bimetal temperature control switch

,

KSD303 bimetal temperature control switch

,

KSD301 bimetal temperature control switch

KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch

The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.

KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch 0

 KSD301 thermostat’s  specification

Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
ActionTemperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request.
Temperature deviation: ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistanc AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Two kinds of mounting bracket movable or immovable
Terminal type

a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm

b. Terminal Angle: bending angle: 0~90°C optional

House plastic or ceramic.
Temperature sensor face aluminum cap or copper head.



KSD301 Difference of auto reset type and Manual reset type

3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )

3.2. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.

KSD301 bimetal thermostats Application

It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.

Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20℃+-5℃ 5℃+-5℃ 95℃+-5℃ 80℃+-5℃ 205℃+-5℃ 175℃+-10℃
-15℃+-5℃ 5℃+-5℃ 100℃+-5℃ 80℃+-10℃ 210℃+-5℃ 180℃+-10℃
-10℃+-5℃ 5℃+-5℃ 105℃+-5℃ 85℃+-10℃ 215℃+-5℃ 185℃+-10℃
0℃+-5℃ -10℃+-5℃ 110℃+-5℃ 90℃+-10℃ 220℃+-5℃ 190℃+-10℃
5℃+-5C -5℃+-5℃ 115℃+-5℃ 95℃+-10℃ 225℃+-5℃ 195℃+-10℃
10℃+-5℃ 0℃+-5℃ 120℃+-5℃ 100℃+-10℃ 230℃+-5℃ 200℃+-10℃
15℃+-5℃ 5℃+-5℃ 125℃+-5℃ 105℃+-10℃ 235℃+-5℃ 205℃+-10℃
20℃+-5℃ 5℃+-5℃ 130℃+-5℃ 110℃+-10℃ 240℃+-5℃ 210℃+-10℃
25℃+-5℃ 10℃+-5℃ 135℃+-5℃ 115℃+-10℃ 245℃+-5℃ 215℃+-10℃
30℃+-5℃ 15℃+-5℃ 140℃+-5℃ 120℃+-10℃ 250℃+-5℃ 220℃+-10℃
35℃+-5℃ 20℃+-5℃ 145℃+-5℃ 125℃+-10℃ 255℃+-5℃ 225℃+-10℃
40℃+-5℃ 25℃+-5℃ 150℃+-5℃ 130℃+-10℃ 260℃+-5℃ 230℃+-10℃
45℃+-5℃ 30℃+-5℃ 155℃+-5℃ 130℃+-10℃ 265℃+-5℃ 235℃+-10℃
50℃+-5℃ 35℃+-5℃ 160℃+-5℃ 135℃+-10℃ 270℃+-5℃ 240℃+-10℃
55℃+-5℃ 40℃+-5℃ 165℃+-5℃ 140℃+-10℃ 275℃+-5℃ 245℃+-10℃
60℃+-5℃ 45℃+-5℃ 170℃+-5℃ 145℃+-10℃ 280℃+-5℃ 250℃+-10℃
65℃+-5℃ 50℃+-5℃ 175℃+-5℃ 150℃+-10℃ 285℃+-5℃ 255℃+-10℃
70℃+-5℃ 55℃+-5℃ 180℃+-5℃ 155℃+-10℃ 290℃+-5℃ 260℃+-10℃
75℃+-5℃ 60℃+-5℃ 185℃+-5℃ 155℃+-10℃ 295℃+-5℃ 265℃+-10℃
80℃+-5℃ 65℃+-5℃ 190℃+-5℃ 160℃+-10℃ 300℃+-5℃ 270℃+-10℃
85℃+-5℃ 70℃+-5℃ 195℃+-5℃ 165℃+-10℃ Or according to client’s request
90℃+-5℃ 75℃+-5℃ 200℃+-5℃ 170℃+-10℃



KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch 1KSD301 250V 16A KSD302 KSD303 Bimetal Temperature Control Switch 2

The product UL,CQC,TUV and RoHS certification approval.
