JUC-31F KSD-01F Temperature Controller Thermostat Auto Reset Thermal Fuse

JUC-31F KSD-01F Temperature Controller Thermostat Auto Reset Thermal Fuse

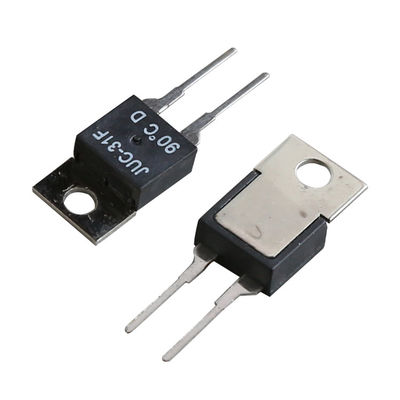

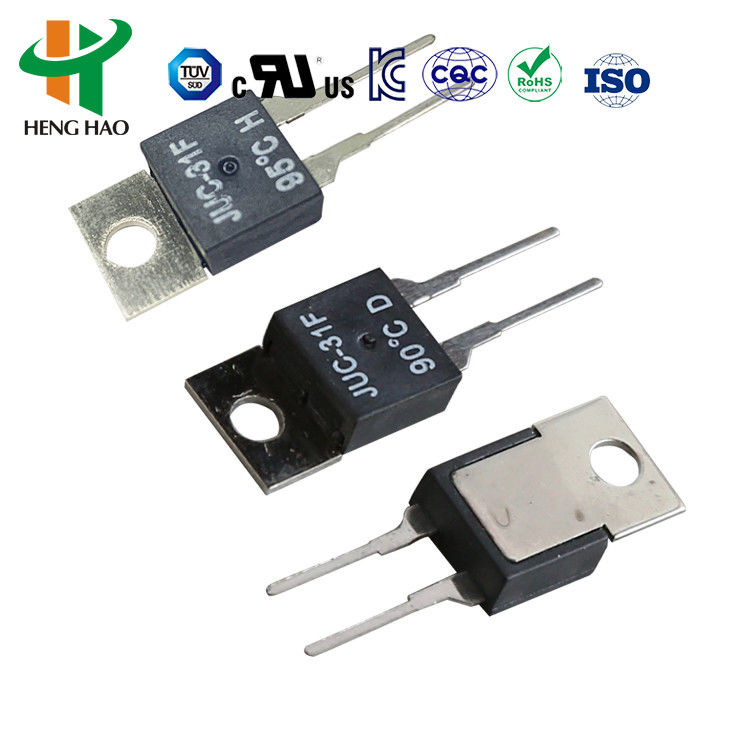

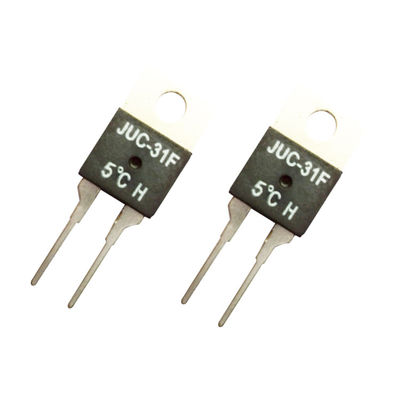

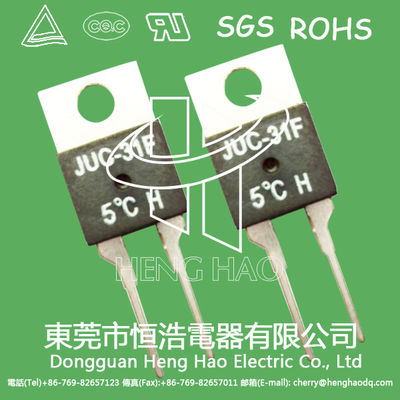

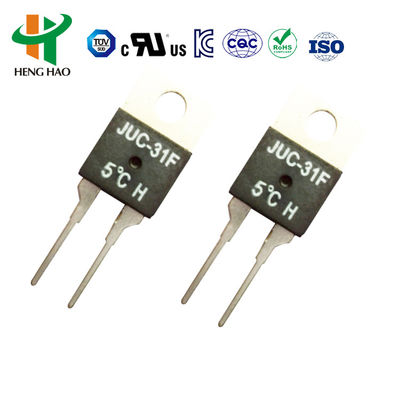

The product is a touch-type plastic snap temperature thermostat sensor adopting international TO220/Y220 standard packaging. It features high reliability, sensitive and accurate performance, compact size, lightweight design, and easy installation, making it ideal for PCB circuit boards, heat equipment, and power device applications.

• Contact Load: AC 120V 1A; DC 48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
• Contact Type: ID (closed) / H (open)
• Overheating Temperature: 250°C
• Contact Resistance: Less than 50mΩ
• Insulation Resistance: More than 100 mΩ
• Dielectric Withstand Voltage: More than 1500V
• Product Life: More than 10,000 cycles
• Weight: 1.7g
• Action Temperature Deviation: ±5°C

JUC-31F thermostat is suitable for electric equipment, electric products, household appliances, temperature control protection, thermal overload in circuit boards, communication power supplies, switching power supplies, UPS power supplies, medical power supplies, fire power, module power supplies, audio amplifier equipment, various types of rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation electronic equipment, automation equipment, military, and commercial product temperature control or temperature protection.

The product holds UL, CQC, VDE and RoHS certification approvals.

17AM is an excess-current thermal protector with compact design, quick and accurate action. We can rivet different types of leads according to customers' requirements.

• Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact Life Cycles: AC-125V 15A, AC-250V 10A more than 10,000 cycles; AC-125V 5A more than 100,000 cycles
• Operating Temperature Range: 50-180°C
• Temperature Tolerance: ±2°C, ±3°C, ±5°C
• Reset Temperature: 10~45 degrees in off temperature decline
• Working Times: Over 10,000 cycles

17AM XXX A / B 5 A,B,C,D ………..Z

• (17AMH): The number of product series
• (XXX): Trip off temperature in °C Code
• (A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
• (5): OFF Temperature Tolerance Code
• (A, B, C, D………..Z): Different type of connecting wire
